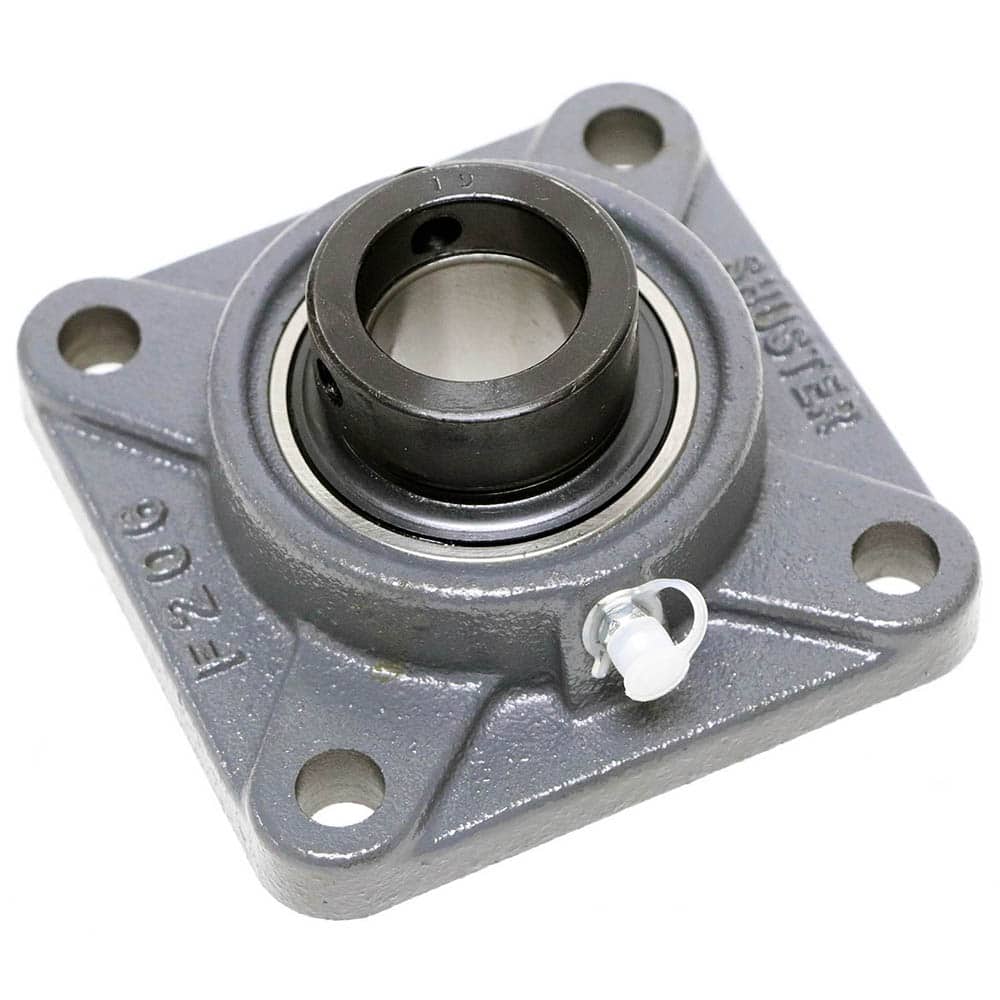

Shuster - NAF204-12, 3/4" ID, 3-3/8" OAL x 3-3/8" OAH, 4-Bolt Flange Bearing
Item #: 18647503
Brand: Shuster
Model #: 06156508
Product Specifications
| Type | 4-Bolt Flange Bearing |
| Inside Diameter (Decimal Inch) | 0.7500 |
| Inside Diameter (Inch) | 3/4 |
| Width (Decimal Inch) | 1.7180 |
| Width (mm) | 43.70 |
| Overall Length (Inch) | 3-3/8 |
| Overall Length (mm) | 86.0000 |
| Overall Height (Inch) | 3-3/8 |
| Overall Height (Decimal Inch) | 3.3750 |
| Overall Height (mm) | 86.00000 |
| Distance Between Mounting Hole Centers | 64.0000 |
| Distance Between Mounting Hole Centers | 2.500 |
| Material | Cast Iron Housing with Steel Bearing |
| Distance Between Base And Center | 15.0000 |
| Distance Between Base And Center | 0.5930 |
| Lock Type | Eccentric |
