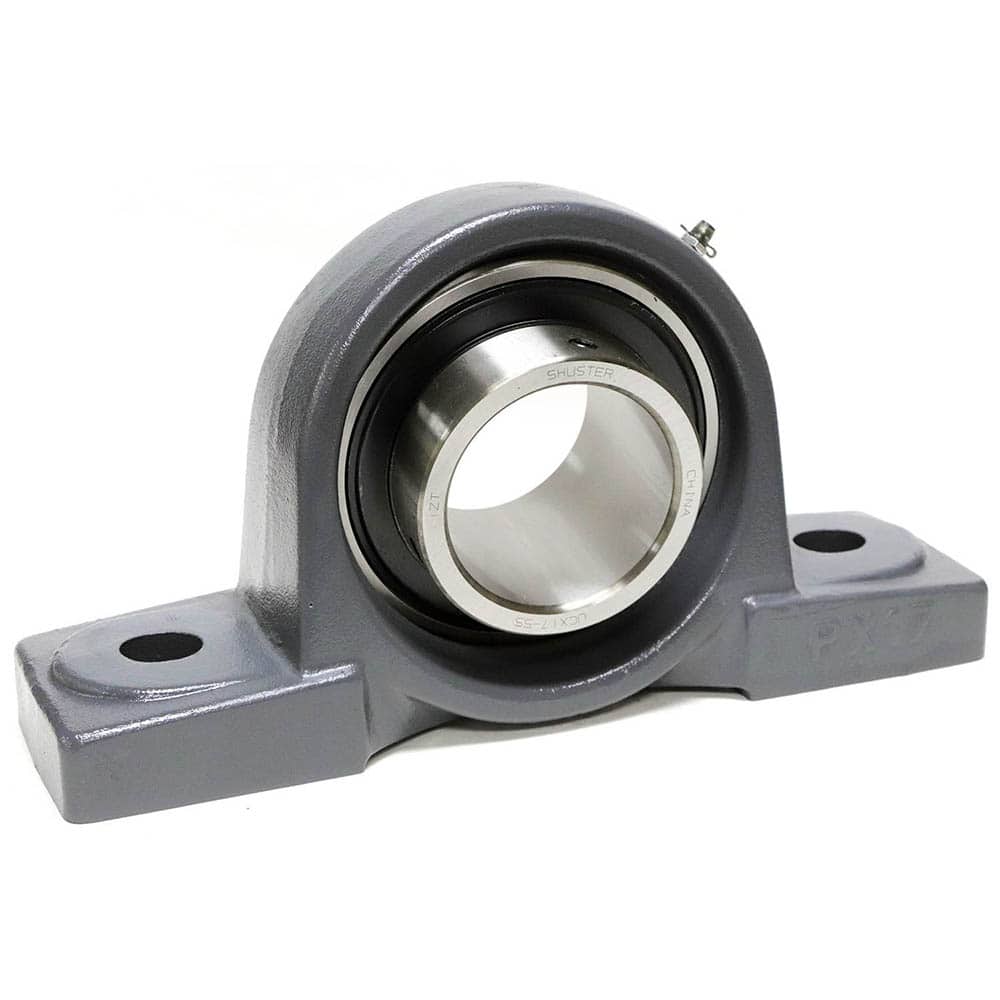

Shuster - UCPX12-39, 2-7/16" ID, 11" OAL x 5-7/8" OAH, Medium Duty Ball Bearing Pillow Block
Item #: 18647727
Brand: Shuster
Model #: 07510178
Product Specifications
| Type | Ball Bearing Pillow Block Medieum Duty |
| Inside Diameter (Decimal Inch) | 2.4375 |
| Inside Diameter (Inch) | 2-7/16 |
| Width (Decimal Inch) | 3.1880 |
| Width (mm) | 81.00 |
| Overall Length (Inch) | 11 |
| Overall Length (mm) | 280.0000 |
| Overall Height (Inch) | 5-7/8 |
| Overall Height (Decimal Inch) | 5.8750 |
| Overall Height (mm) | 149.00000 |
| Distance Between Mounting Hole Centers | 203.0000 |
| Distance Between Mounting Hole Centers | 8.000 |
| Material | Cast Iron Housing with Steel Bearing |
| Distance Between Base And Center | 76.2000 |
| Distance Between Base And Center | 3.0000 |
| Lock Type | Set Screw |
