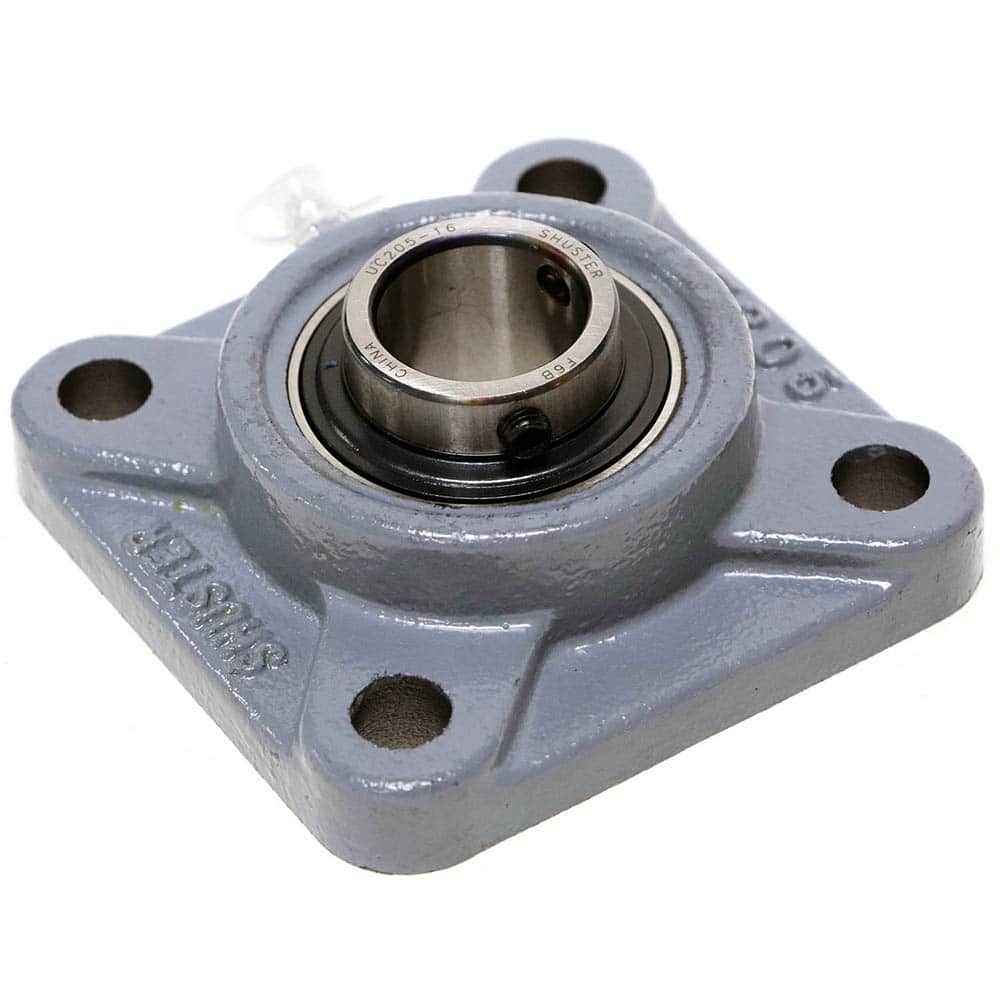

Shuster - UCF207-22, 1-3/8" ID, 4-5/8" OAL x 4-5/8" OAH x 1-3/4" Wide, 4-Bolt Flange Bearing
Item #: 18647867
Brand: Shuster
Model #: 08102166
Product Specifications
| Type | 4-Bolt Flange Bearing |
| Inside Diameter (Decimal Inch) | 1.3750 |
| Inside Diameter (Inch) | 1-3/8 |
| Width (Inch) | 1-3/4 |
| Width (mm) | 44.40 |
| Overall Length (Inch) | 4-5/8 |
| Overall Length (mm) | 117.0000 |
| Overall Height (Inch) | 4-5/8 |
| Overall Height (Decimal Inch) | 4.6250 |
| Overall Height (mm) | 117.00000 |
| Distance Between Mounting Hole Centers | 92.0000 |
| Distance Between Mounting Hole Centers | 3.625 |
| Material | Cast Iron Housing with Steel Bearing |
| Distance Between Base And Center | 19.0000 |
| Distance Between Base And Center | 0.7500 |
| Lock Type | Set Screw |
