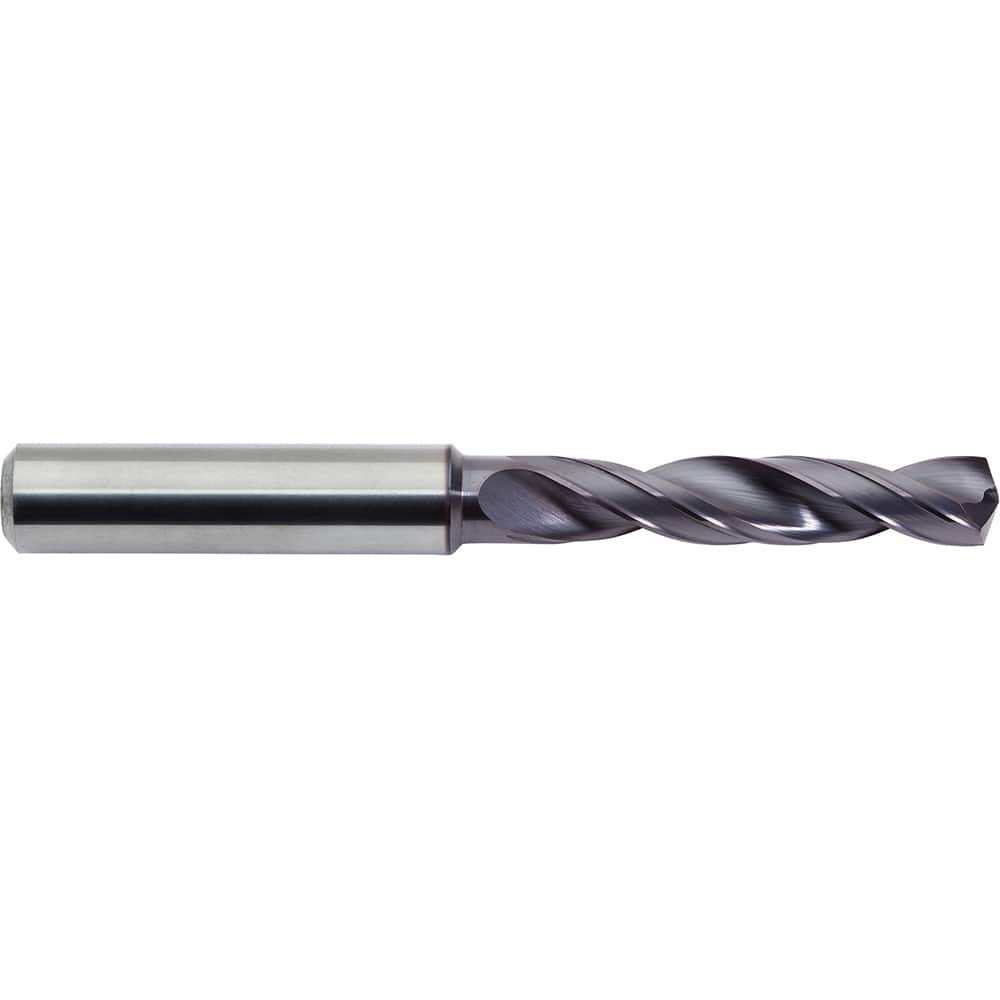

M.A. Ford - Screw Machine Length Drill Bits; Drill Bit Size (Decimal Inch): 0.7598 ; Drill Bit Size (mm): 19.30 ; Drill Point Angle: 142 ; Drill Bit Material: Carbide ; Drill Bit Finish/Coating: ALtima? Plus ; Flute Type: Helical
Item #: 18702928
Brand: M.A. Ford
Model #: CXDSS 1930AP
Product Specifications
Screw Machine Length Drill Bits; Drill Bit Size (Decimal Inch): 0.7598 ; Drill Bit Size (mm): 19.30 ; Drill Point Angle: 142 ; Drill Bit Material: Carbide ; Drill Bit Finish/Coating: ALtima? Plus ; Flute Type: Helical
| Drill Bit Size (Decimal Inch) | 0.7598 |
| Drill Bit Size (mm) | 19.30 |
| Drill Point Angle | 142 |
| Drill Bit Material | Carbide |
| Drill Bit Finish/Coating | ALtima? Plus |
| Flute Type | Helical |
| Cutting Direction | Right Hand |
| Shank Type | Straight |
| Coolant Through | Yes |
| Flute Length (mm) | 79.00 |
| Overall Length (mm) | 131.0000 |
| Overall Length (Decimal Inch) | 5.15750 |
| Flute Length x Diameter Ratio | 3xD |
| Shank Diameter (mm) | 20.0000 |
| Shank Diameter (Decimal Inch) | 0.7874 |
| Specification Designation | DIN |
| Number of Flutes | 2 |
| Spiral Type | Right Hand |
| Specification Number | DIN 6537K |
| Number of Margins | 2.000 |
| Series/List | CXDSS |
| Length Type | Stub |
