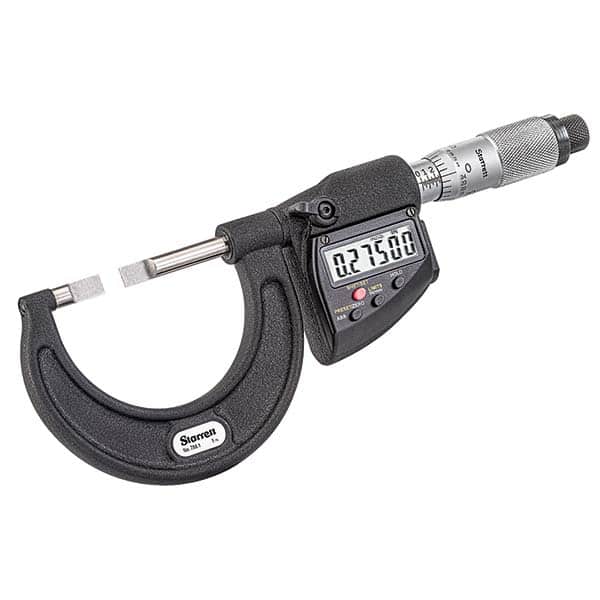

Blade Micrometer: 3 to 4″, Electronic ±0.0001″ Accuracy, 1/32″ Blade Thickness, Friction Thimble
Item #: 18932202
Brand: Starrett
Model #: 786.1MEP-100
Product Specifications
| Minimum Measurement (mm) | 75.00 |
| Minimum Measurement (Decimal Inch) | 3.0000 |
| Maximum Measurement (Decimal Inch) | 4.0000 |
| Maximum Measurement (mm) | 100.00 |
| Operation Type | Electronic |
| Thimble Type | Friction |
| Calibrated | No |
| Rotating Spindle | No |
| Data Output | Yes |
| Accuracy (Decimal Inch) | ?0.0001 |
| Accuracy (mm) | 0.0020 |
| Anvil Material | Steel |
| Spindle Material | Steel |
| Resolution (Decimal Inch) | 0.00005 |
| Resolution (mm) | 0.001 |
| Spindle Diameter (Inch) | 1/4 |
| Spindle Diameter (Decimal Inch) | 0.2500 |
| Spindle Diameter (mm) | 6.00 |
| Finish | Black (Frame) |
| Blade Thickness (Decimal Inch) | 0.0300 |
| Blade Thickness (Inch) | 1/32 |
| Blade Thickness (mm) | 0.75 |
| Blade Depth (Inch) | 5/16 |
| Blade Depth (mm) | 8.00 |
| Blade Depth (Decimal Inch) | 0.3125 |
| Traceability Certification Included | No |
| Throat Depth (Decimal Inch) | 2.9000 |
| Battery Size | CR2032 |
| Includes | Adjustment Wrench |
| Water Resistance Rating | IP67 |
| Series | 786.1 |
