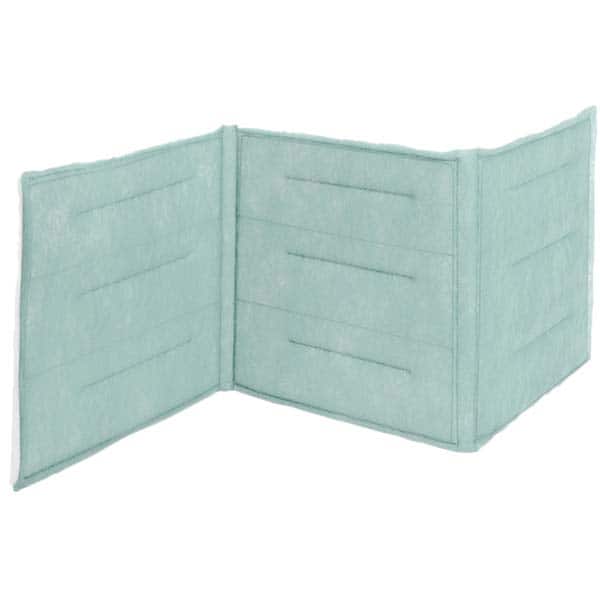

PRO-SOURCE - Pleated & Panel Air Filters Filter Type: Link Nominal Height (Inch): 20
Item #: 14943260
Brand: PRO-SOURCE
Model #:
Product Specifications
Pleated & Panel Air Filters; Filter Type: Link ; Nominal Height (Inch): 20 ; Nominal Width (Inch): 100 ; Nominal Depth (Inch): 1 ; MERV Rating: 8 ; Media Material: Polyester
| Filter Type | Link |
| Nominal Height (Inch) | 20 |
| Nominal Width (Inch) | 100 |
| Nominal Depth (Inch) | 1 |
| MERV Rating | 8 |
| Media Material | Polyester |
| Integrated Frame | Yes |
| Actual Height (Decimal Inch) | 20.000 |
| Actual Width (Decimal Inch) | 100.000 |
| Actual Depth (Inch) | 1 |
| Maximum Air Flow (FPM) | 375 |
| Initial Resistance at FPM (Inches w.g.) | 0.06 (at 74 FPM); 0.10 (at 148 FPM); 0.15 (at 221 FPM); 0.21 (at 295 FPM); 0.27 ( at 369 FPM) |
| Final Resistance at FPM (Inches w.g.) | 1.5 |
| Maximum Temperature (F) | 120.000 |
| Frame Material | Wire |
| Standards Met | UL 900 |
