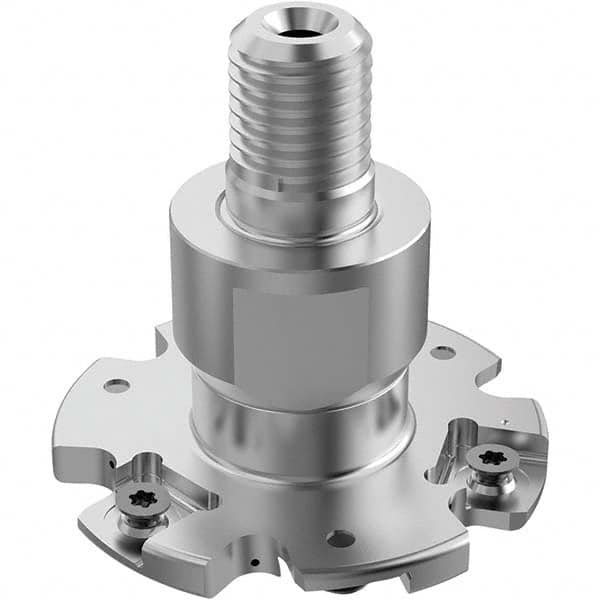

Seco - Combimaster Connection, 1/4" Cutting Width, 0.7047" Depth of Cut, 2-1/2" Cutter Diam, 6 Tooth Indexable Slotting Cutter
Item #: 96584214
Brand: Seco
Model #: 03277882
| Product Specifications | |
|---|---|
| Connection Type | Combimaster |
| Cutting Width (Decimal Inch) | 0.2500 |
| Cutting Width (Inch) | 1/4 |
| Maximum Depth of Cut (Decimal Inch) | 0.7047 |
| Cutter Diameter (Inch) | 2-1/2 |
| Modular Connection Size | M16 |
| Number of Teeth | 6 |
| Toolholder Style | R335.19 |
| Series | R335.19 |
| Insert Style | SNHQ 1204 |
| Staggered Tooth | Yes |
| Number of Cutter Inserts | 6 |
| Cutting Direction | Right Hand |
| Insert Holding Method | Screw |
| Maximum RPM | 9400 |
| Rake | Positive |
| Lead Angle | 90 |
