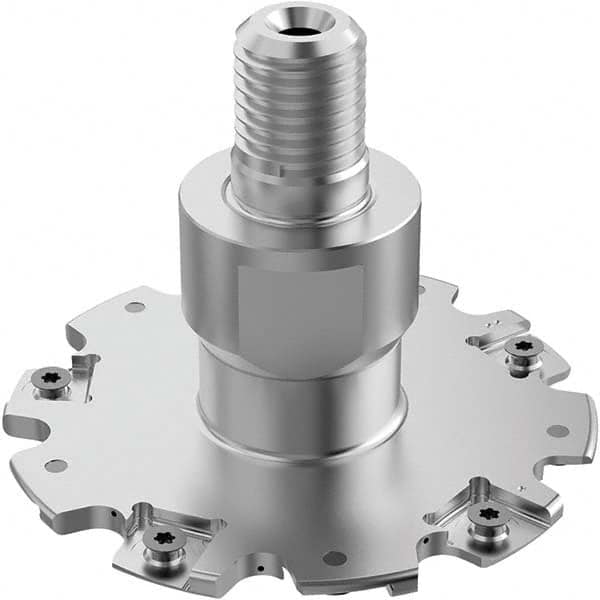

Seco - Combimaster Connection, 3/16" Cutting Width, 0.9528" Depth of Cut, 3" Cutter Diam, 10 Tooth Indexable Slotting Cutter
Item #: 96584263
Brand: Seco
Model #: 03277884
| Product Specifications | |
|---|---|
| Connection Type | Combimaster |
| Cutting Width (Decimal Inch) | 0.1874 |
| Cutting Width (Inch) | 3/16 |
| Maximum Depth of Cut (Decimal Inch) | 0.9528 |
| Cutter Diameter (Inch) | 3 |
| Modular Connection Size | M16 |
| Number of Teeth | 10 |
| Toolholder Style | R335.19 |
| Series | R335.19 |
| Insert Style | SNHQ 1103 |
| Staggered Tooth | Yes |
| Number of Cutter Inserts | 10 |
| Cutting Direction | Right Hand |
| Insert Holding Method | Screw |
| Maximum RPM | 13200 |
| Rake | Positive |
| Lead Angle | 90 |
