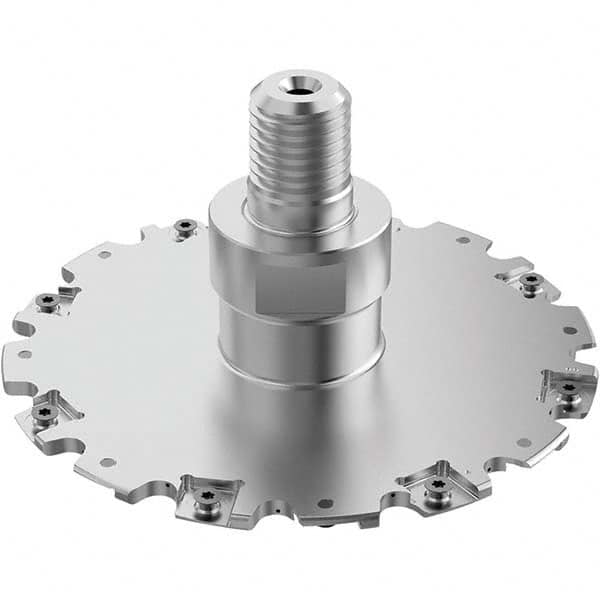

Seco - Combimaster Connection, 4mm Cutting Width, 45.2mm Depth of Cut, 125mm Cutter Diam, 16 Tooth Indexable Slotting Cutter
Item #: 96583976
Brand: Seco
Model #: 03277873
| Product Specifications | |
|---|---|
| Connection Type | Combimaster |
| Cutting Width (mm) | 4.00 |
| Cutting Width (Decimal Inch) | 0.1575 |
| Maximum Depth of Cut (mm) | 45.20 |
| Cutter Diameter (mm) | 125.00 |
| Modular Connection Size | M20 |
| Number of Teeth | 16 |
| Toolholder Style | R335.19 |
| Series | R335.19 |
| Insert Style | SNHQ 1102 |
| Staggered Tooth | Yes |
| Number of Cutter Inserts | 16 |
| Cutting Direction | Right Hand |
| Insert Holding Method | Screw |
| Maximum RPM | 12200 |
| Rake | Positive |
| Lead Angle | 90 |
