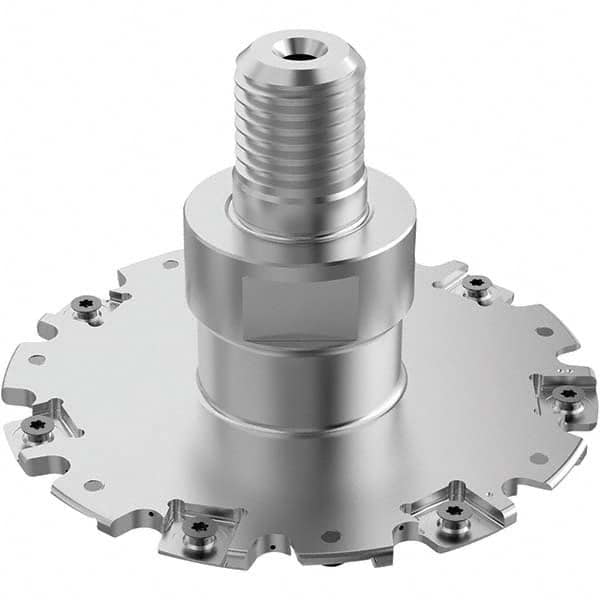

Seco - Combimaster Connection, 3/16" Cutting Width, 1.315" Depth of Cut, 4" Cutter Diam, 14 Tooth Indexable Slotting Cutter
Item #: 96584305
Brand: Seco
Model #: 03277887
| Product Specifications | |
|---|---|
| Connection Type | Combimaster |
| Cutting Width (Decimal Inch) | 0.1874 |
| Cutting Width (Inch) | 3/16 |
| Maximum Depth of Cut (Decimal Inch) | 1.3150 |
| Cutter Diameter (Inch) | 4 |
| Modular Connection Size | M20 |
| Number of Teeth | 14 |
| Toolholder Style | R335.19 |
| Series | R335.19 |
| Insert Style | SNHQ 1103 |
| Staggered Tooth | Yes |
| Number of Cutter Inserts | 14 |
| Cutting Direction | Right Hand |
| Insert Holding Method | Screw |
| Maximum RPM | 11800 |
| Rake | Positive |
| Lead Angle | 90 |
