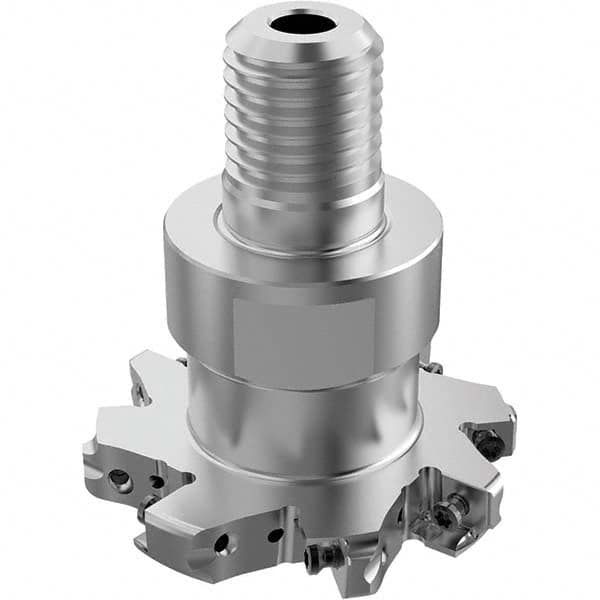

Seco - Combimaster Connection, 8mm Cutting Width, 15mm Depth of Cut, 63mm Cutter Diam, 8 Tooth Indexable Slotting Cutter
Item #: 96584255
Brand: Seco
Model #: 03277897
| Product Specifications | |
|---|---|
| Connection Type | Combimaster |
| Cutting Width (mm) | 8.00 |
| Cutting Width (Decimal Inch) | 0.3150 |
| Maximum Depth of Cut (mm) | 15.00 |
| Cutter Diameter (mm) | 63.00 |
| Modular Connection Size | M20 |
| Number of Teeth | 8 |
| Toolholder Style | R335.18 |
| Series | R335.18 |
| Insert Style | LNK. 05.. |
| Staggered Tooth | Yes |
| Number of Cutter Inserts | 8 |
| Cutting Direction | Right Hand |
| Insert Holding Method | Screw |
| Maximum RPM | 12300 |
| Rake | Positive |
| Lead Angle | 90 |
