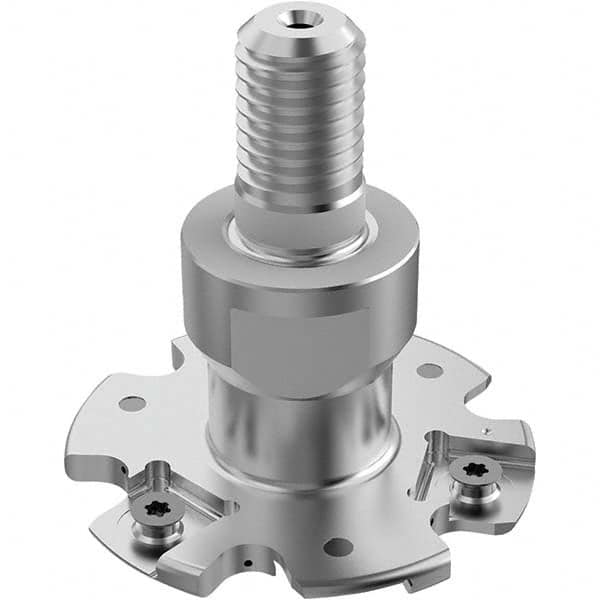

Seco - Combimaster Connection, 5mm Cutting Width, 14.9mm Depth of Cut, 50mm Cutter Diam, 6 Tooth Indexable Slotting Cutter
Item #: 96584123
Brand: Seco
Model #: 03277860
| Product Specifications | |
|---|---|
| Connection Type | Combimaster |
| Cutting Width (mm) | 5.00 |
| Cutting Width (Decimal Inch) | 0.1969 |
| Maximum Depth of Cut (mm) | 14.90 |
| Cutter Diameter (mm) | 50.00 |
| Modular Connection Size | M12 |
| Number of Teeth | 6 |
| Toolholder Style | R335.19 |
| Series | R335.19 |
| Insert Style | SNHQ 1103 |
| Staggered Tooth | Yes |
| Number of Cutter Inserts | 6 |
| Cutting Direction | Right Hand |
| Insert Holding Method | Screw |
| Maximum RPM | 16800 |
| Rake | Positive |
| Lead Angle | 90 |
