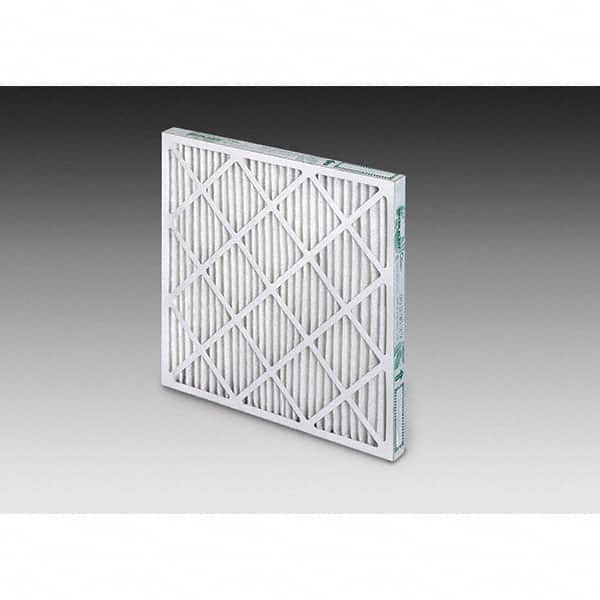

PRO-SOURCE - 18 x 24 x 4", MERV 13, 80 to 85% Efficiency, Wire-Backed Pleated Air Filter
Item #: 15164221
Brand: PRO-SOURCE
Model #:
| Product Specifications | |
|---|---|
| Filter Type | Wire-Backed Pleated |
| Nominal Height (Inch) | 18 |
| Nominal Width (Inch) | 24 |
| Nominal Depth (Inch) | 4 |
| Particle Capture Efficiency (%) | 80-85 |
| MERV Rating | 13 |
| Media Material | Synthetic |
| Integrated Frame | Yes |
| Actual Height (Inch) | 17-3/8 |
| Actual Width (Inch) | 23-3/8 |
| Actual Depth (Inch) | 3-3/4 |
| Maximum Air Flow (FPM) | 500 |
| CFM | 1500 |
| Initial Resistance at FPM (Inches w.g.) | 0.34 (at 500 fpm) |
| Final Resistance at FPM (Inches w.g.) | 1 |
| Maximum Temperature (F) | 150 |
| Capacity | High |
| Pleats Per Square Foot | 12 |
| Frame Material | Beverage Board |
| Features | Earns LEED points |
| For Use With | Any Unit |
| Standards Met | UL 900; ASHRAE 52.2 |
