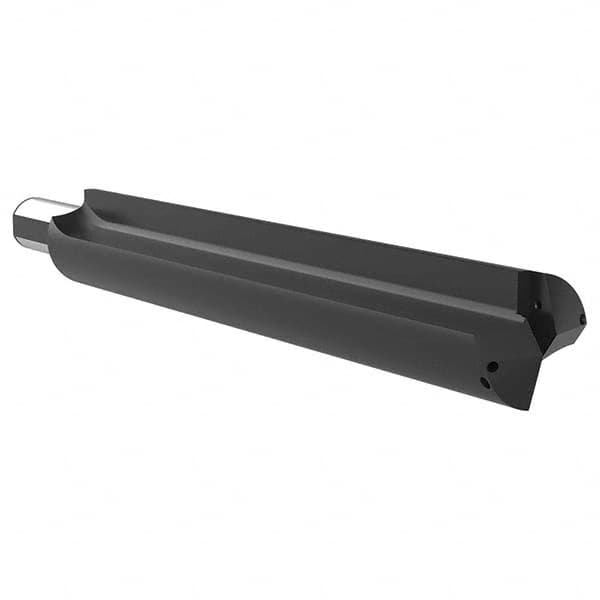

Allied Machine and Engineering - 89.1mm to 101.6mm Diam 556mm Max Depth Straight Flute Spade Drill
Item #: 12329306
Brand: Allied Machine and Engineering
Model #: 25070S-50FM
Features and Benefits
Straight flutes are used for horizontal machining center applications.
| Product Specifications | |
|---|---|
| Series | 7 |
| Minimum Drill Diameter (mm) | 89.10 |
| Minimum Drill Diameter (Decimal Inch) | 3.5080 |
| Maximum Drill Diameter (mm) | 101.60 |
| Maximum Drill Diameter (Decimal Inch) | 4.5070 |
| Shank Type | Straight Shank with Flange |
| Shank Diameter (mm) | 50.00 |
| Spade Drill Length | Extended Length |
| Overall Length (mm) | 696.00 |
| Maximum Drill Depth (mm) | 556.00 |
| Flute Type | Straight Flute |
| Body Length (mm) | 606.90 |
| Shank Length (mm) | 80.00 |
| Series Code/Seat Size | 7 |
| Through Coolant | Yes |
| Coolant Hole Thread Type | NPT |
| Shank End Coolant Hole Thread Size (Inch) | 1/2 |
