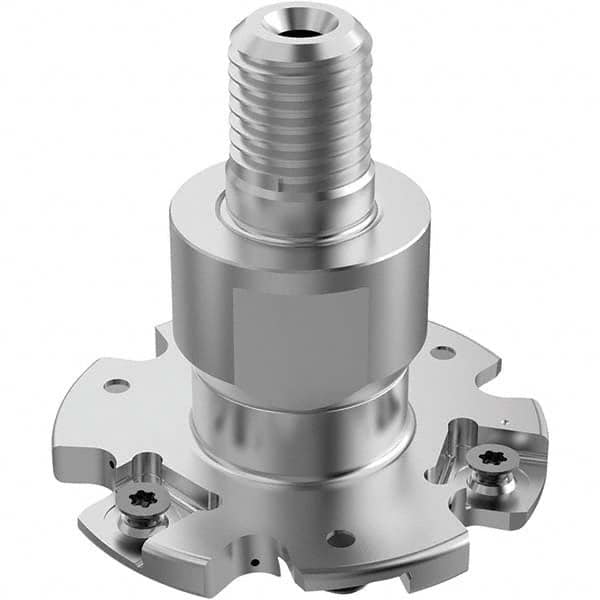

Seco - Combimaster Connection, 7mm Cutting Width, 17.6mm Depth of Cut, 63mm Cutter Diam, 6 Tooth Indexable Slotting Cutter
Item #: 96583869
Brand: Seco
Model #: 03277865
| Product Specifications | |
|---|---|
| Connection Type | Combimaster |
| Cutting Width (mm) | 7.00 |
| Cutting Width (Decimal Inch) | 0.2756 |
| Maximum Depth of Cut (mm) | 17.60 |
| Cutter Diameter (mm) | 63.00 |
| Modular Connection Size | M16 |
| Number of Teeth | 6 |
| Toolholder Style | R335.19 |
| Series | R335.19 |
| Insert Style | SNHQ 1204; SNHQ 12045 |
| Staggered Tooth | Yes |
| Number of Cutter Inserts | 6 |
| Cutting Direction | Right Hand |
| Insert Holding Method | Screw |
| Maximum RPM | 9400 |
| Rake | Positive |
| Lead Angle | 90 |
