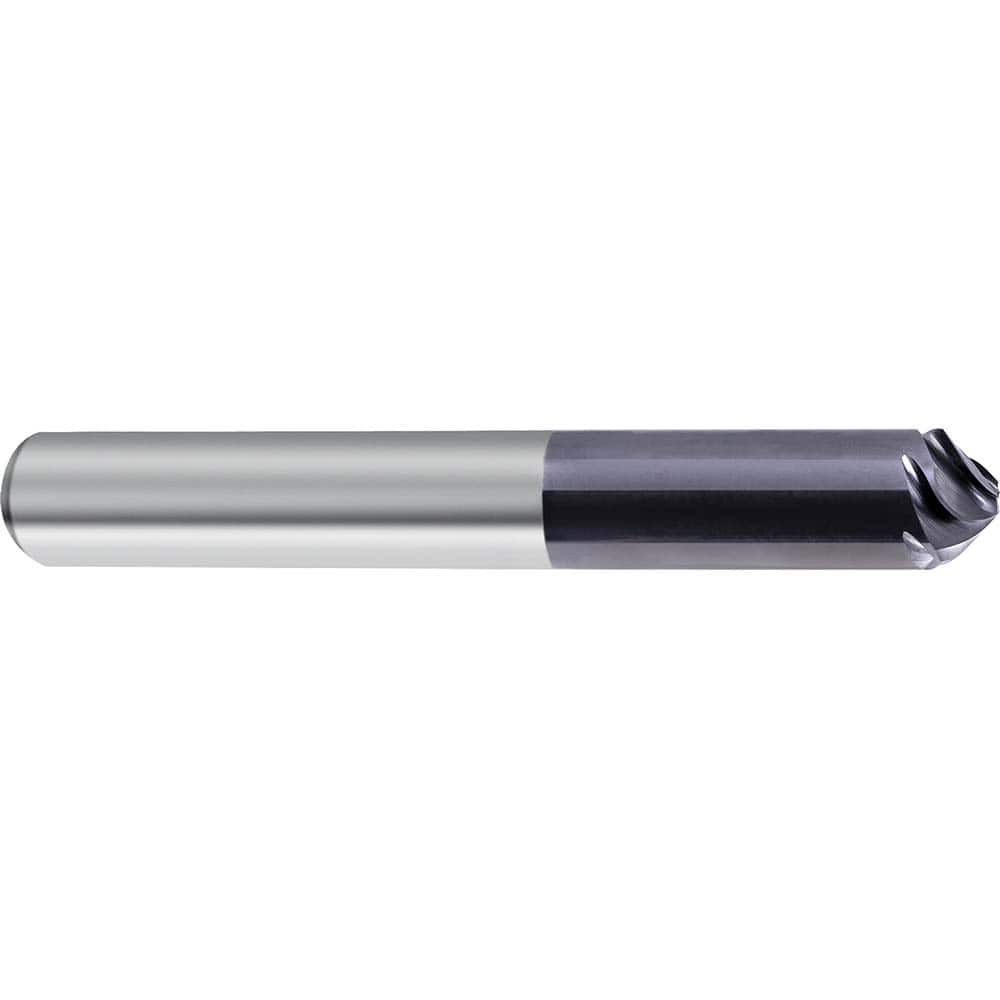

Chamfer Mill: 0.3125″ Dia, 5 Flutes, Solid Carbide 2-1/2″ OAL, 5/16″ Shank Dia, Nano-A Coated
Item #: 19213131
Brand: Guhring
Model #: 9068760079400
Product Specifications
| Cutter Head Diameter (mm) | 7.94 |
| Cutter Head Diameter (Decimal Inch) | 0.3125 |
| Length of Cut (mm) | 2.78 |
| Shank Diameter (mm) | 7.94 |
| Shank Diameter (Decimal Inch) | 0.3125 |
| Shank Diameter (Inch) | 5/16 |
| Overall Length (Inch) | 2-1/2 |
| Overall Length (Decimal Inch) | 2.5000 |
| Overall Length (mm) | 63.50 |
| Cutting Direction | Right Hand |
| Series | 6876 |
| Insertable Cutter Head | No |
| Cutting Edge Style | Helical |
| Body Diameter (Inch) | 5/16 |
| Included Angle A | 90.00 |
| Chamfer Mill Material | Solid Carbide |
| Number Of Flutes | 5 |
| Material Application | Tin; Aluminum Alloy; Stainless; Steel |
| Length Of Cut (Decimal Inch - 4 Decimals) | 0.1094 |
| Body Diameter (Decimal Inch) | 0.3125 |
| Coating/Finish | nano-A |
