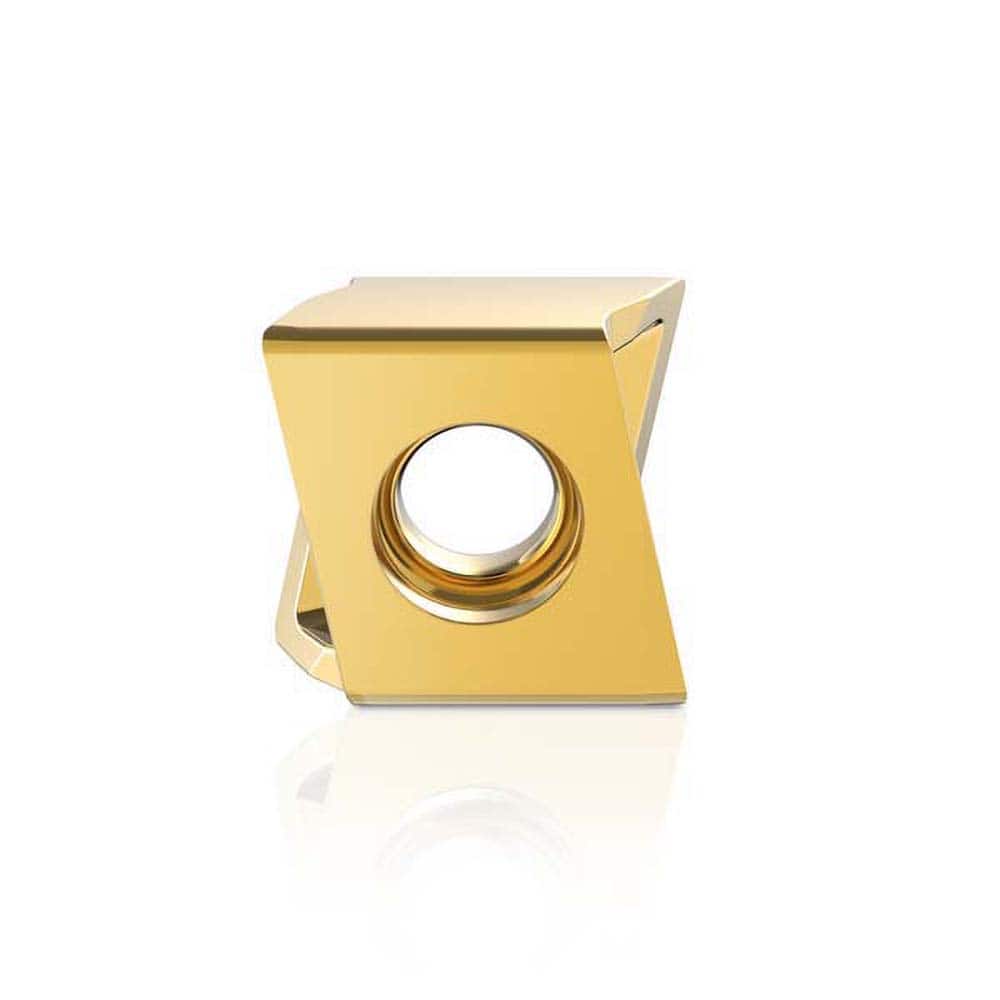

LNGQ120620ELGEKT4 Carbide Milling Insert Al2O3 Finish, 0.5118″ Long x 1/4″ Thick x 0.5124″ Wide
Item #: 19238401
Brand: Kennametal
Model #: 6723754
Product Specifications
| Insert Style | LNGQ |
| Insert Size | 120620 |
| Insert Material | Solid Carbide |
| Manufacturer Grade | KCK15 |
| Thickness (Inch) | 1/4 |
| Inscribed Circle (Decimal Inch) | 0.1929 |
| Corner Radius (Inch) | 5/64 |
| Inscribed Circle Range (Decimal Inch) | 0.0000 to 0.2500 |
| Length Range (Decimal Inch) | 0.5000 to 0.6000 |
| Insert Hand | Left Hand |
| Coating Process | MTCVD |
| Iso Code | LNGQ120620ELGEKT4 |
| Manufacturers Catalog Number | LNGQ120620ELGEKT4 |
| Chip Breaker | GE |
| Cutting Direction | Left Hand |
| Coating/Finish | Al2O3 |
| Width (Decimal Inch - 4 Decimals) | 0.5124 |
| Length (Decimal Inch - 4 Decimals) | 0.5118 |
