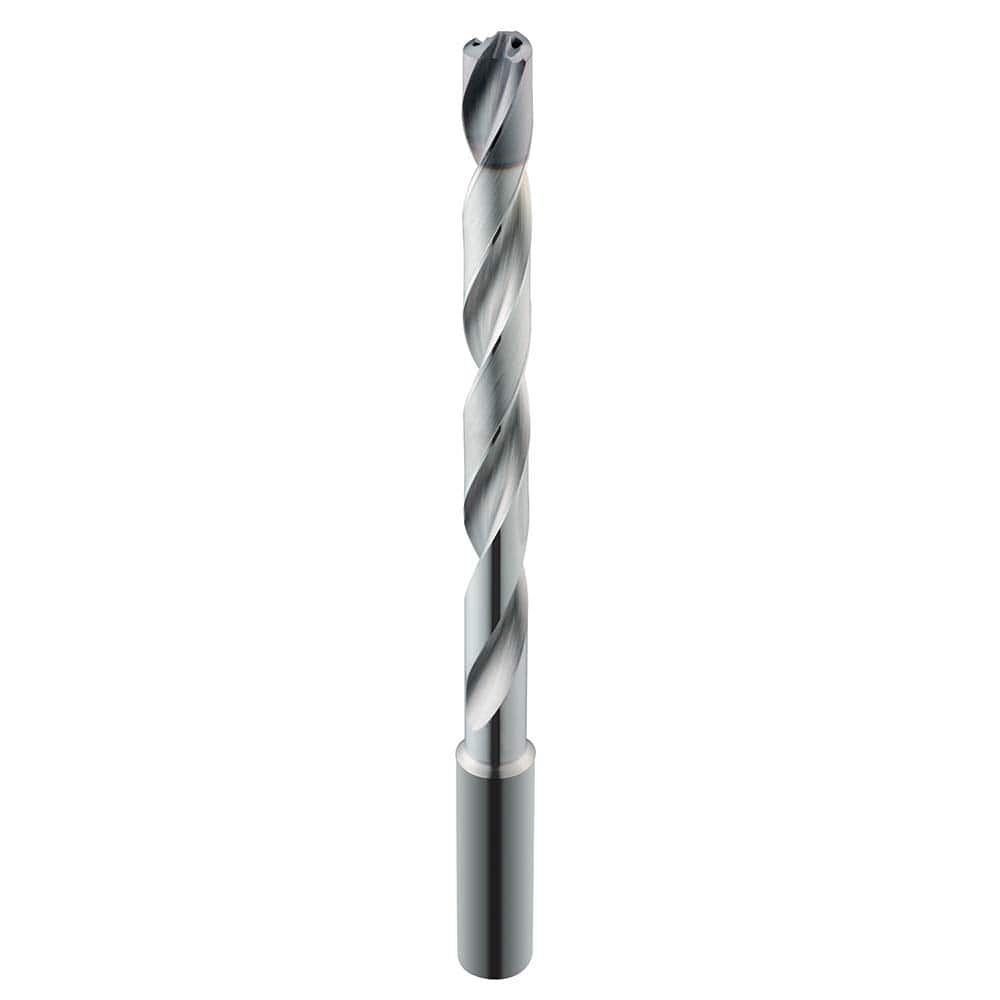

SGS - 9/32" 135° Spiral Flute Solid Carbide Taper Length Drill Bit
Item #: 19242478
Brand: SGS
Model #: 56485
Product Specifications
| Drill Bit Size (mm) | 7.14 |
| Drill Bit Size (Inch) | 9/32 |
| Drill Bit Size (Decimal Inch) | 0.2812 |
| Drill Point Angle | 135 |
| Drill Bit Material | Solid Carbide |
| Drill Bit Finish/Coating | TX |
| Flute Type | Spiral |
| Cutting Direction | Right Hand |
| Shank Type | Cylindrical |
| Through Coolant | Yes |
| Point Type | Standard |
| Flute Length (Decimal Inch) | 2.9921 |
| Flute Length (mm) | 76.00 |
| Overall Length (mm) | 114.0003 |
| Overall Length (Decimal Inch) | 4.48820 |
| Spiral Type | Regular Spiral |
| Shank Diameter (mm) | 8.0010 |
| Maximum Drilling Depth (mm) | 76.00 |
| Maximum Drilling Depth (Decimal Inch) | 2.9921 |
| Shank Length (mm) | 35.999 |
| Shank Length (Decimal Inch) | 1.4173 |
| Drill Point Length (mm) | 1.48 |
| Drill Point Length (Decimal Inch) | 0.0582 |
| Drill Bit Diameter Tolerance (mm) | +0.006/+0.021 |
| Drill Bit Diameter Tolerance (Decimal Inch) | +.00024/+.00083 |
| Web Thinning | Web-Thinning |
| Specification Number | DIN 6537 |
| PSC Code | 3455 |
| Material Grade | Micro-Grain |
| Series/List | 142P |
| Drill Bit Grade | High Performance |
