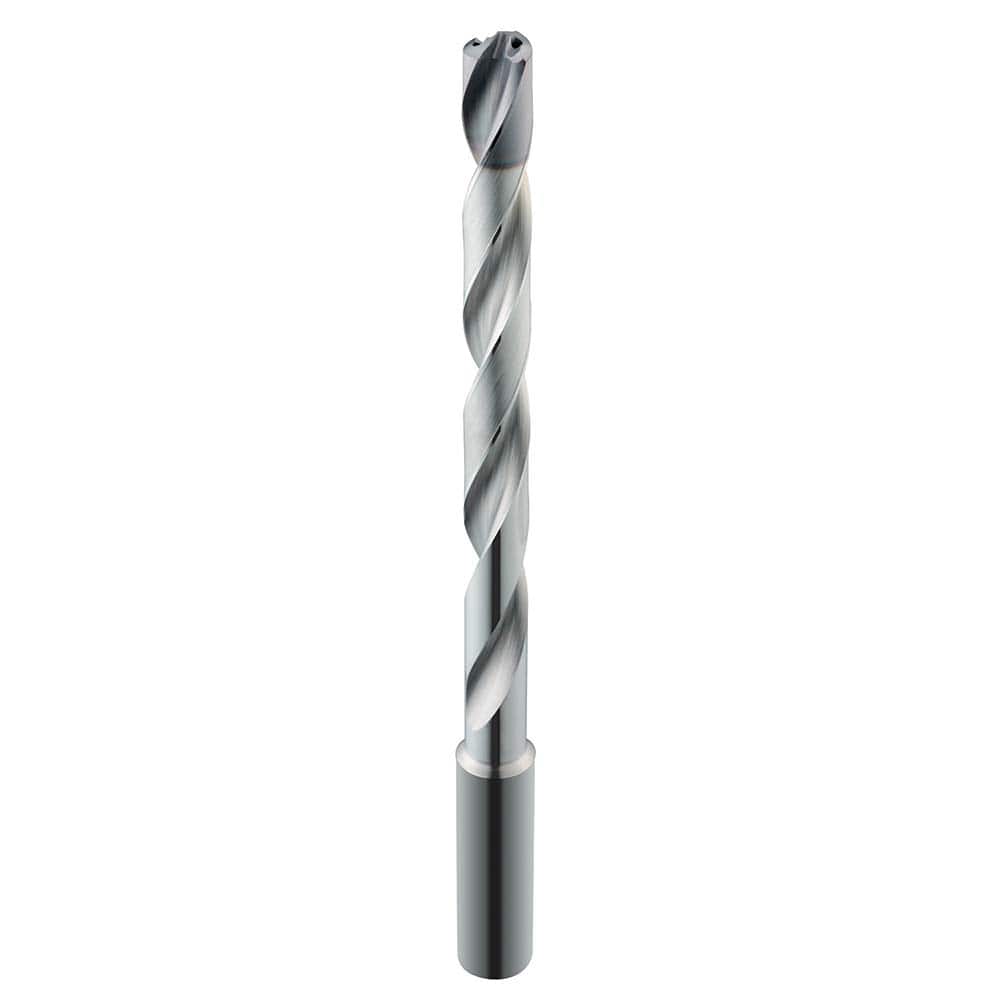

SGS - 21/32" 135° Spiral Flute Solid Carbide Taper Length Drill Bit
Item #: 19242965
Brand: SGS
Model #: 56505
Product Specifications
| Drill Bit Size (mm) | 16.67 |
| Drill Bit Size (Inch) | 21/32 |
| Drill Bit Size (Decimal Inch) | 0.6562 |
| Drill Point Angle | 135 |
| Drill Bit Material | Solid Carbide |
| Drill Bit Finish/Coating | TX |
| Flute Type | Spiral |
| Cutting Direction | Right Hand |
| Shank Type | Cylindrical |
| Through Coolant | Yes |
| Point Type | Standard |
| Flute Length (Decimal Inch) | 6.7323 |
| Flute Length (mm) | 171.00 |
| Overall Length (mm) | 221.9985 |
| Overall Length (Decimal Inch) | 8.74010 |
| Spiral Type | Regular Spiral |
| Shank Diameter (mm) | 18.0010 |
| Maximum Drilling Depth (mm) | 171.00 |
| Maximum Drilling Depth (Decimal Inch) | 6.7323 |
| Shank Length (mm) | 48.001 |
| Shank Length (Decimal Inch) | 1.8898 |
| Drill Point Length (mm) | 3.45 |
| Drill Point Length (Decimal Inch) | 0.1359 |
| Drill Bit Diameter Tolerance (mm) | +0.007/+0.025 |
| Drill Bit Diameter Tolerance (Decimal Inch) | +.00028/+.00098 |
| Web Thinning | Web-Thinning |
| Specification Number | DIN 6537 |
| PSC Code | 3455 |
| Material Grade | Micro-Grain |
| Series/List | 142P |
| Drill Bit Grade | High Performance |
