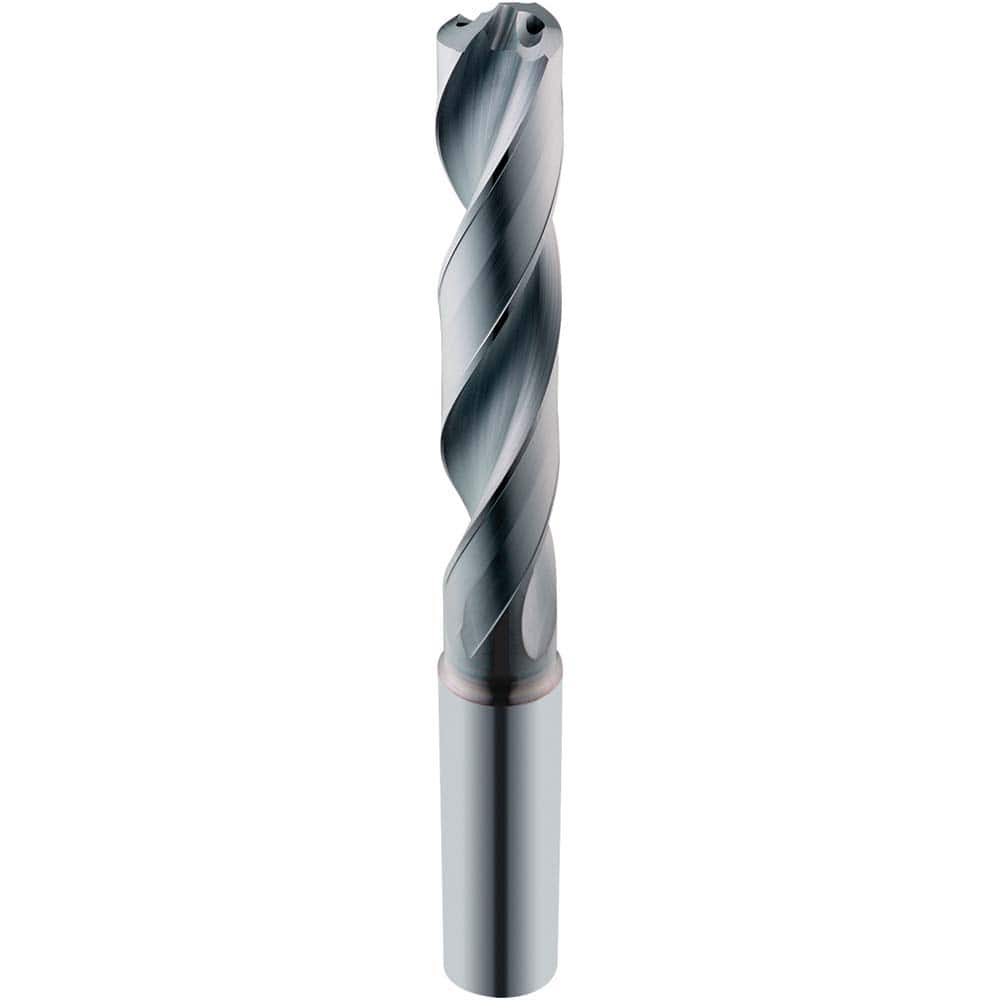

SGS - #29 135° Solid Carbide Screw Machine Drill
Item #: 19243286
Brand: SGS
Model #: 56401
Product Specifications
| Drill Bit Size (Decimal Inch) | 0.1360 |
| Drill Bit Size (Wire) | #29 |
| Drill Bit Size (mm) | 3.45 |
| Drill Point Angle | 135 |
| Drill Bit Material | Solid Carbide |
| Drill Bit Finish/Coating | TX |
| Flute Type | Spiral |
| Cutting Direction | Right Hand |
| Shank Type | Cylindrical |
| Coolant Through | Yes |
| Flute Length (mm) | 20.00 |
| Flute Length (Decimal Inch) | 0.7874 |
| Overall Length (mm) | 61.9989 |
| Overall Length (Decimal Inch) | 2.44090 |
| Point Type | Standard |
| Shank Diameter (mm) | 5.9995 |
| Shank Diameter (Decimal Inch) | 0.2362 |
| Specification Designation | DIN |
| Maximum Drilling Depth (Decimal Inch) | 0.7874 |
| Number of Flutes | 2 |
| Spiral Type | Regular Spiral |
| Shank Length (mm) | 35.999 |
| Shank Length (Decimal Inch) | 1.4173 |
| Threaded Shank | No |
| Drill Point Length (mm) | 0.72 |
| Drill Point Length (Decimal Inch) | 0.0282 |
| Drill Bit Diameter Tolerance (Decimal Inch) | +.00016/+.00063 |
| Drill Bit Diameter Tolerance (mm) | +0.004/+0.016 |
| Specification Number | DIN 6537 |
| Number of Margins | 4.000 |
| PSC Code | 3455 |
| Web Thinning | Web-Thinned |
| Through Coolant | Yes |
| Drill Bit Grade | High Performance |
| Material Grade | Micro-Grain |
| Series/List | 142P |
| Length Type | Short |
