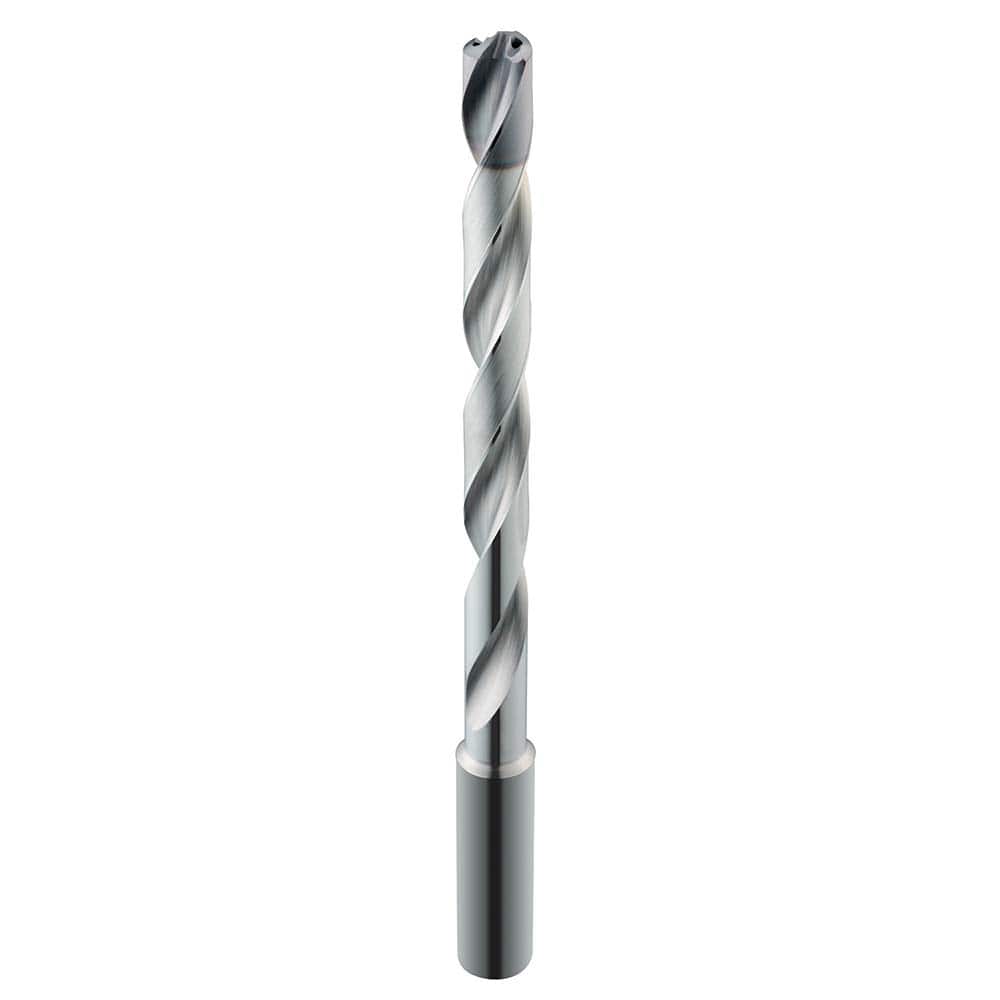

SGS - 5/8" 135° Spiral Flute Solid Carbide Taper Length Drill Bit
Item #: 19243559
Brand: SGS
Model #: 56504
Product Specifications
| Drill Bit Size (mm) | 15.88 |
| Drill Bit Size (Inch) | 5/8 |
| Drill Bit Size (Decimal Inch) | 0.6250 |
| Drill Point Angle | 135 |
| Drill Bit Material | Solid Carbide |
| Drill Bit Finish/Coating | TX |
| Flute Type | Spiral |
| Cutting Direction | Right Hand |
| Shank Type | Cylindrical |
| Through Coolant | Yes |
| Point Type | Standard |
| Flute Length (Decimal Inch) | 5.9842 |
| Flute Length (mm) | 152.00 |
| Overall Length (mm) | 202.9993 |
| Overall Length (Decimal Inch) | 7.99210 |
| Spiral Type | Regular Spiral |
| Shank Diameter (mm) | 15.9995 |
| Maximum Drilling Depth (mm) | 152.00 |
| Maximum Drilling Depth (Decimal Inch) | 5.9842 |
| Shank Length (mm) | 48.001 |
| Shank Length (Decimal Inch) | 1.8898 |
| Drill Point Length (mm) | 3.29 |
| Drill Point Length (Decimal Inch) | 0.1294 |
| Drill Bit Diameter Tolerance (mm) | +0.007/+0.025 |
| Drill Bit Diameter Tolerance (Decimal Inch) | +.00028/+.00098 |
| Web Thinning | Web-Thinning |
| Specification Number | DIN 6537 |
| PSC Code | 3455 |
| Material Grade | Micro-Grain |
| Series/List | 142P |
| Drill Bit Grade | High Performance |
