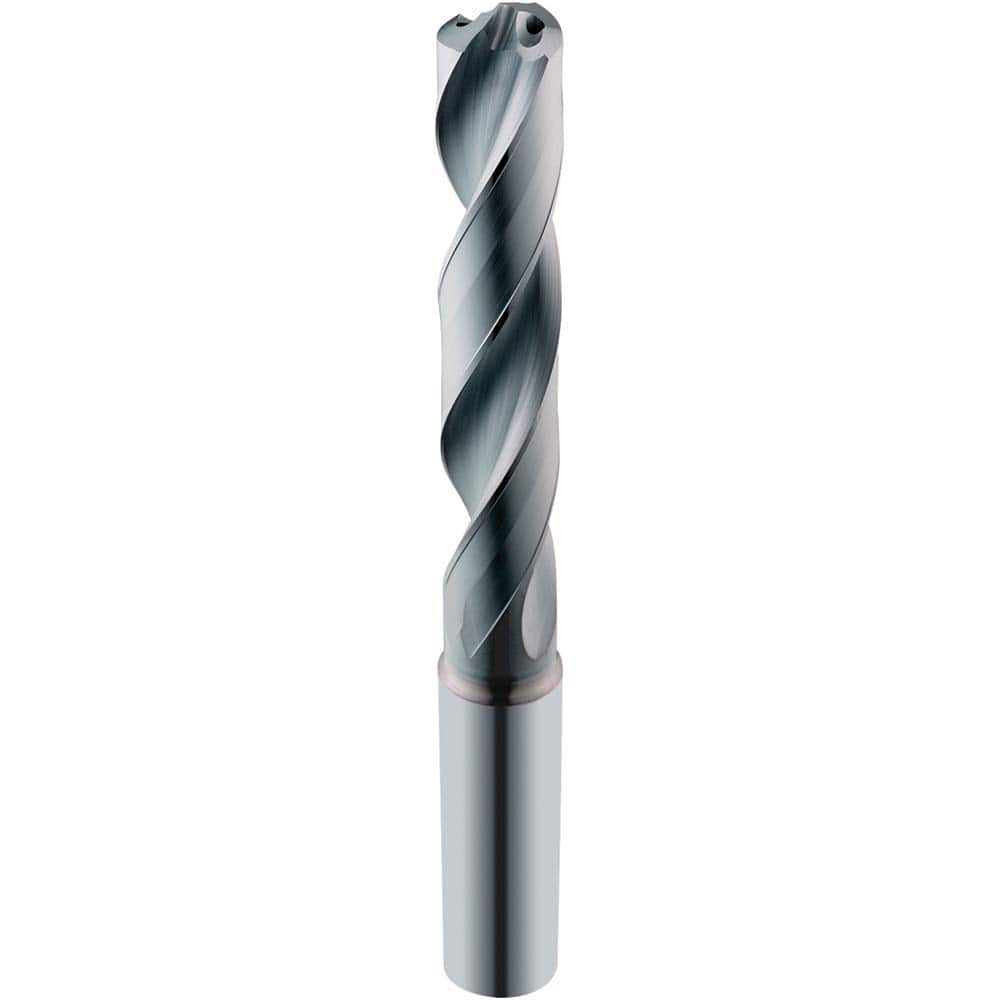

SGS - 4.9mm 135° Solid Carbide Jobber Drill
Item #: 19244326
Brand: SGS
Model #: 66522
Product Specifications
| Drill Bit Size (mm) | 4.90 |
| Drill Bit Size (Decimal Inch) | 0.1929 |
| Drill Point Angle | 135 |
| Drill Bit Material | Solid Carbide |
| Drill Bit Finish/Coating | TX |
| Flute Type | Spiral |
| Cutting Direction | Right Hand |
| Shank Type | Cylindrical |
| Coolant Through | Yes |
| Flute Length (mm) | 44.00 |
| Flute Length (Decimal Inch) | 1.7323 |
| Overall Length (mm) | 82 |
| Overall Length (Decimal Inch) | 3.22830 |
| Point Type | Standard |
| Shank Diameter (mm) | 6 |
| Shank Diameter (Inch) | 0.2362 |
| Shank Size (Inch) | 0.2362 |
| Maximum Drilling Depth (Decimal Inch) | 2.2047 |
| Maximum Drilling Depth (mm) | 56 |
| Shank Length (mm) | 36 |
| Shank Length (Decimal Inch) | 1.4173 |
| Specification Designation | DIN |
| Number of Flats | 0 |
| Drill Point Length (mm) | 1.02 |
| Drill Point Length (Decimal Inch) | 0.0400 |
| Drill Bit Diameter Tolerance (mm) | +0.004/+0.016 |
| Drill Bit Diameter Tolerance (Decimal Inch) | +.00016/+.00063 |
| Number of Flutes | 2 |
| PSC Code | 3455 |
| Web Thinning | Web-Thinned |
| Specification Number | DIN 6537 |
| Drill Bit Grade | High Performance |
| Material Grade | Micrograin |
| Series/List | 142P |
