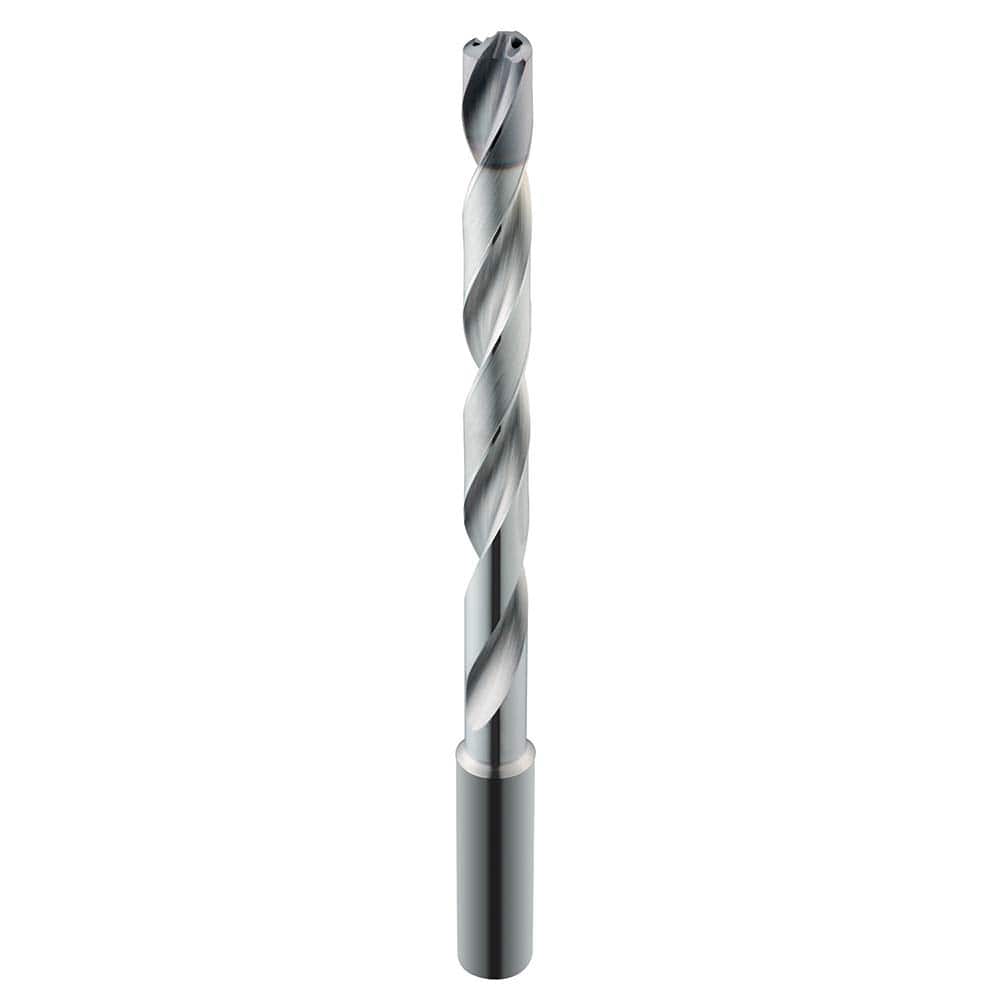

SGS - 10.5mm 135° Spiral Flute Solid Carbide Taper Length Drill Bit
Item #: 19245067
Brand: SGS
Model #: 66681
Product Specifications
| Drill Bit Size (mm) | 10.50 |
| Drill Bit Size (Decimal Inch) | 0.4134 |
| Drill Point Angle | 135 |
| Drill Bit Material | Solid Carbide |
| Drill Bit Finish/Coating | TX |
| Flute Type | Spiral |
| Cutting Direction | Right Hand |
| Shank Type | Cylindrical |
| Through Coolant | Yes |
| Point Type | Standard |
| Flute Length (Decimal Inch) | 4.4882 |
| Flute Length (mm) | 114.00 |
| Overall Length (mm) | 161.9987 |
| Overall Length (Decimal Inch) | 6.37790 |
| Spiral Type | Regular Spiral |
| Shank Diameter (mm) | 11.9990 |
| Maximum Drilling Depth (mm) | 114.00 |
| Maximum Drilling Depth (Decimal Inch) | 4.4882 |
| Shank Length (mm) | 45.001 |
| Shank Length (Decimal Inch) | 1.7717 |
| Drill Point Length (mm) | 2.17 |
| Drill Point Length (Decimal Inch) | 0.0856 |
| Drill Bit Diameter Tolerance (mm) | +0.007/+0.025 |
| Drill Bit Diameter Tolerance (Decimal Inch) | +.00028/+.00098 |
| Web Thinning | Web-Thinning |
| Specification Number | DIN 6537 |
| PSC Code | 3455 |
| Material Grade | Micro-Grain |
| Series/List | 142P |
| Drill Bit Grade | High Performance |
