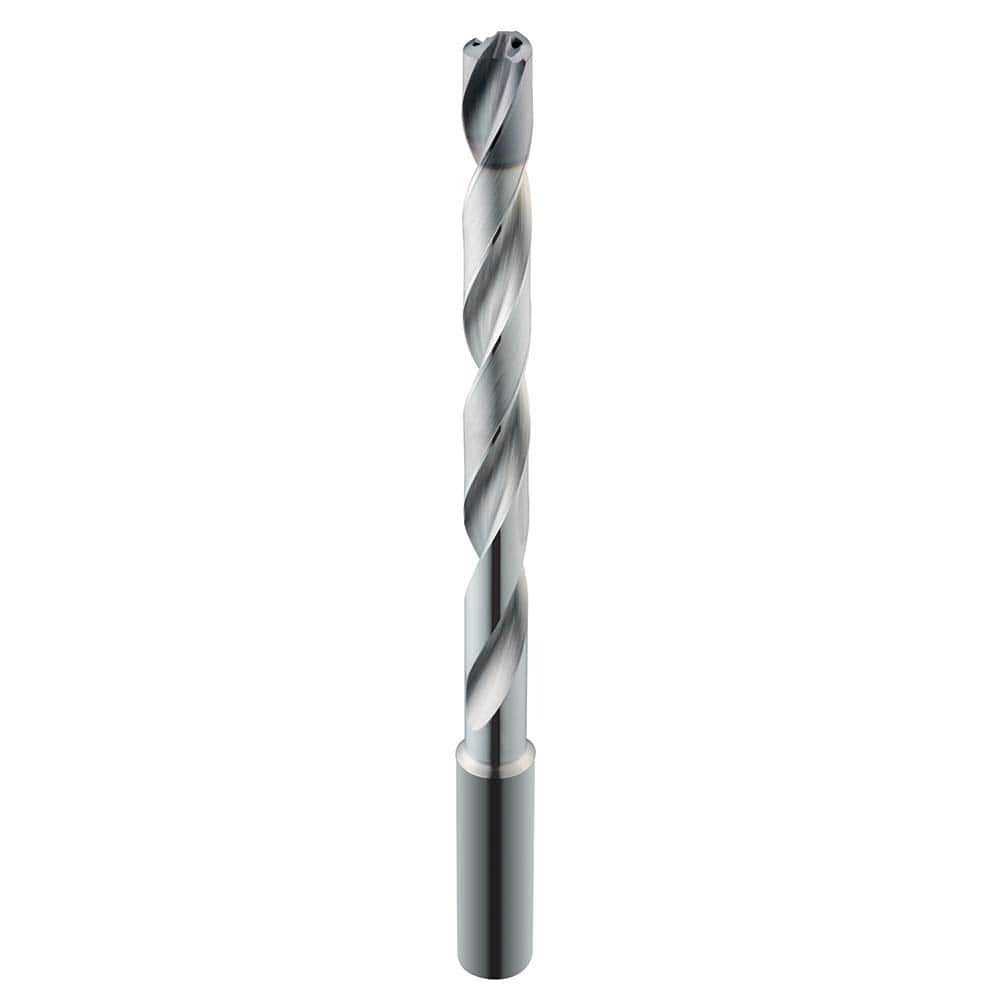

SGS - 4.5mm 135° Spiral Flute Solid Carbide Taper Length Drill Bit
Item #: 19245216
Brand: SGS
Model #: 66621
Product Specifications
| Drill Bit Size (mm) | 4.50 |
| Drill Bit Size (Decimal Inch) | 0.1772 |
| Drill Point Angle | 135 |
| Drill Bit Material | Solid Carbide |
| Drill Bit Finish/Coating | TX |
| Flute Type | Spiral |
| Cutting Direction | Right Hand |
| Shank Type | Cylindrical |
| Through Coolant | Yes |
| Point Type | Standard |
| Flute Length (Decimal Inch) | 1.6929 |
| Flute Length (mm) | 43.00 |
| Overall Length (mm) | 81.0006 |
| Overall Length (Decimal Inch) | 3.18900 |
| Spiral Type | Regular Spiral |
| Shank Diameter (mm) | 5.9995 |
| Maximum Drilling Depth (mm) | 43.00 |
| Maximum Drilling Depth (Decimal Inch) | 1.6929 |
| Shank Length (mm) | 35.999 |
| Shank Length (Decimal Inch) | 1.4173 |
| Drill Point Length (mm) | 0.93 |
| Drill Point Length (Decimal Inch) | 0.0367 |
| Drill Bit Diameter Tolerance (mm) | +0.004/+0.016 |
| Drill Bit Diameter Tolerance (Decimal Inch) | +.00016/+.00063 |
| Web Thinning | Web-Thinning |
| Specification Number | DIN 6537 |
| PSC Code | 3455 |
| Material Grade | Micro-Grain |
| Series/List | 142P |
| Drill Bit Grade | High Performance |
