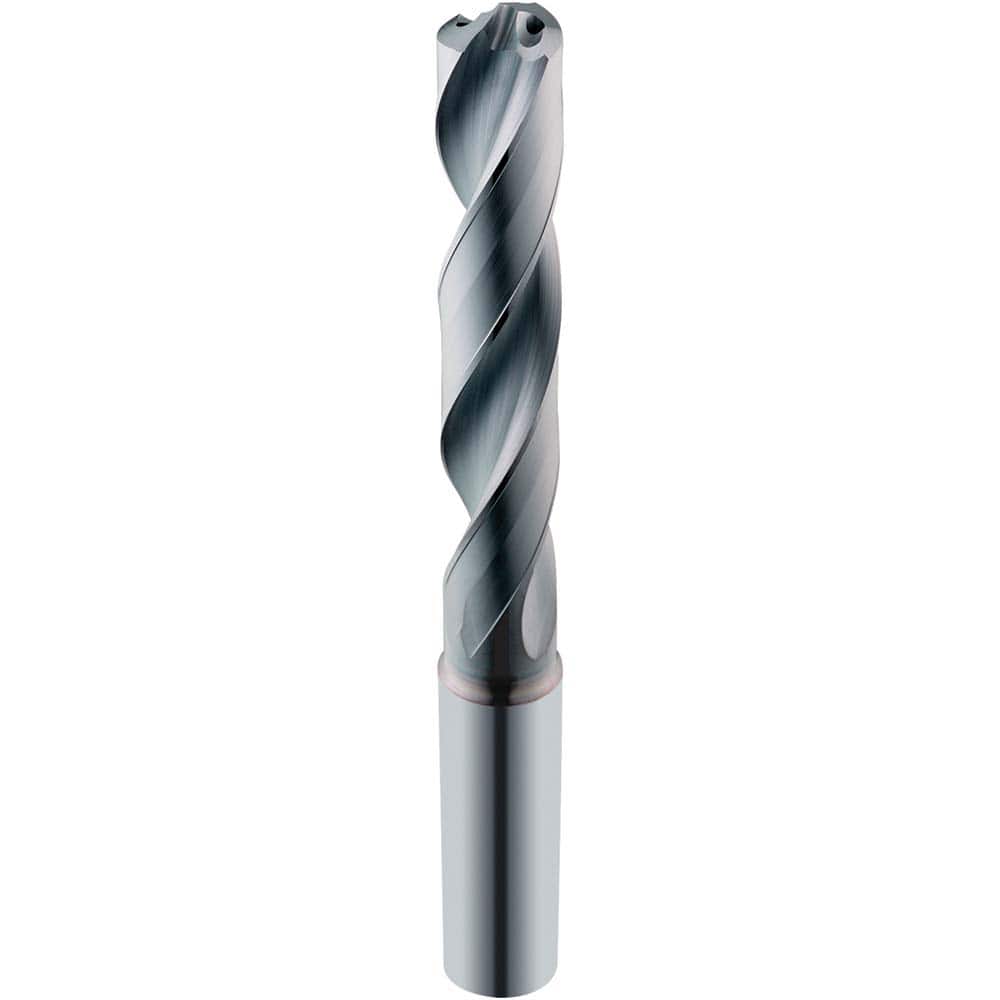

SGS - 9.4mm 135° Solid Carbide Jobber Drill
Item #: 19245695
Brand: SGS
Model #: 66567
Product Specifications
| Drill Bit Size (mm) | 9.40 |
| Drill Bit Size (Decimal Inch) | 0.3701 |
| Drill Point Angle | 135 |
| Drill Bit Material | Solid Carbide |
| Drill Bit Finish/Coating | TX |
| Flute Type | Spiral |
| Cutting Direction | Right Hand |
| Shank Type | Cylindrical |
| Coolant Through | Yes |
| Flute Length (mm) | 61.00 |
| Flute Length (Decimal Inch) | 2.4016 |
| Overall Length (mm) | 103 |
| Overall Length (Decimal Inch) | 4.05510 |
| Point Type | Standard |
| Shank Diameter (mm) | 10 |
| Shank Diameter (Inch) | 0.3937 |
| Shank Size (Inch) | 0.3937 |
| Maximum Drilling Depth (Decimal Inch) | 1.9291 |
| Maximum Drilling Depth (mm) | 49 |
| Shank Length (mm) | 40 |
| Shank Length (Decimal Inch) | 1.5748 |
| Specification Designation | DIN |
| Number of Flats | 0 |
| Drill Point Length (mm) | 1.95 |
| Drill Point Length (Decimal Inch) | 0.0767 |
| Drill Bit Diameter Tolerance (mm) | +0.006/+0.021 |
| Drill Bit Diameter Tolerance (Decimal Inch) | +.00024/+.00083 |
| Number of Flutes | 2 |
| PSC Code | 3455 |
| Web Thinning | Web-Thinned |
| Specification Number | DIN 6537 |
| Drill Bit Grade | High Performance |
| Material Grade | Micrograin |
| Series/List | 142P |
