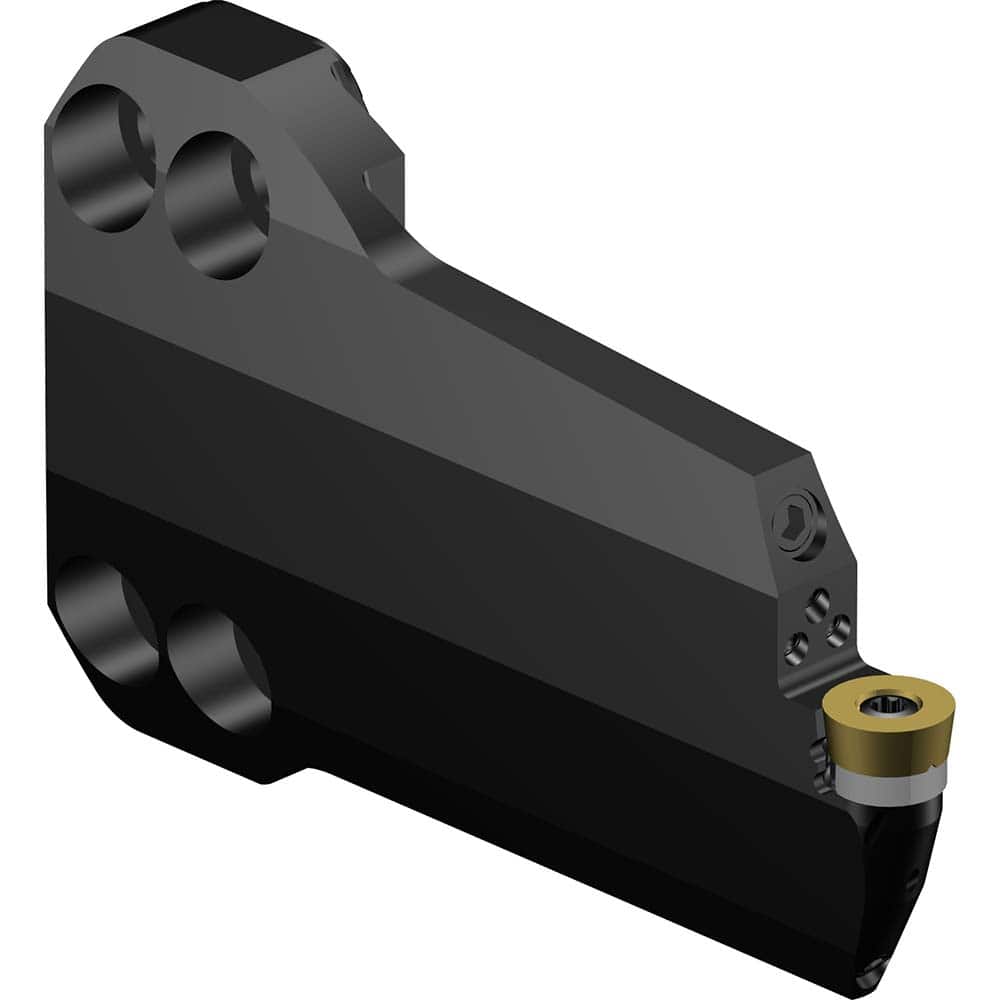

Sandvik Coromant - Modular Turning & Profiling Cutting Unit Heads; System Size: 70 ; Series Name: CoroTurn 107 ; Cutting Direction: Right Hand ; Head Length/Projection (mm): 18.00 ; Insert Style: RCMT ; Internal or External: Internal
Item #: 19255652
Brand: Sandvik Coromant
Model #: 7960778
Product Specifications
Modular Turning & Profiling Cutting Unit Heads; System Size: 70 ; Series Name: CoroTurn 107 ; Cutting Direction: Right Hand ; Head Length/Projection (mm): 18.00 ; Insert Style: RCMT ; Internal or External: Internal
| System Size | 70 |
| Series Name | CoroTurn 107 |
| Cutting Direction | Right Hand |
| Head Length/Projection (mm) | 18.00 |
| Insert Style | RCMT |
| Internal or External | Internal |
| Center to Cutting Edge (mm) | 96.00 |
| Insert Holding Method | Screw |
| Through Coolant | Yes |
| Minimum Hole Diameter (mm) | 120.00 |
| Axial Rake Angle | 0 |
| Center to Cutting Height (mm) | 96.00 |
| Complete Insert Compatibility | RCMT 12 04 MP |
