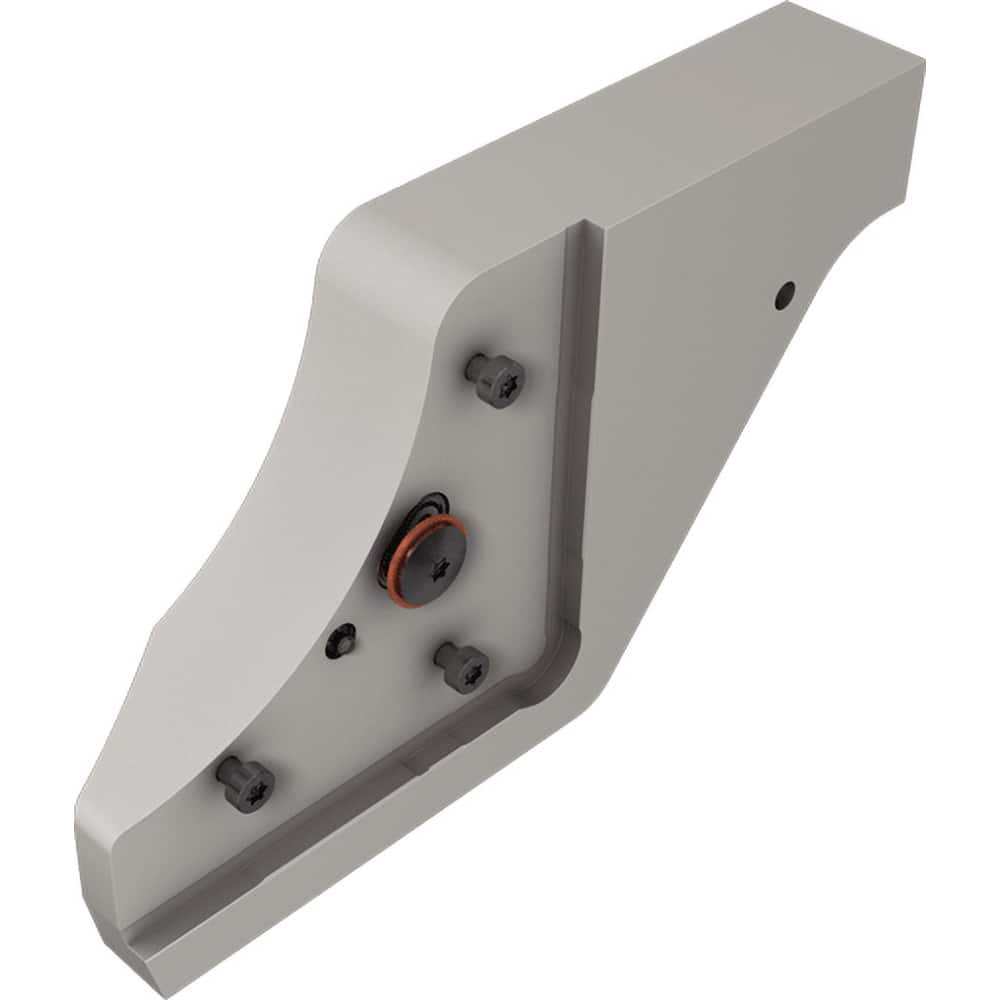

Iscar - Indexable Cut-Off Blade Tool Blocks; Tool Block Style: TGTBQ ; Blade Height (mm): 61.00 ; Blade Height (Decimal Inch): 2.4016 ; Manufacturers Catalog Number: TGTBQ 25.4L-D82-JHP ; Overall Length (mm): 150.0000 ; Overall Height (mm): 64.00000
Item #: 19387471
Brand: Iscar
Model #: 3367543
Product Specifications
Indexable Cut-Off Blade Tool Blocks; Tool Block Style: TGTBQ ; Blade Height (mm): 61.00 ; Blade Height (Decimal Inch): 2.4016 ; Manufacturers Catalog Number: TGTBQ 25.4L-D82-JHP ; Overall Length (mm): 150.0000 ; Overall Height (mm): 64.00000
| Tool Block Style | TGTBQ |
| Blade Height (mm) | 61.00 |
| Blade Height (Decimal Inch) | 2.4016 |
| Manufacturers Catalog Number | TGTBQ 25.4L-D82-JHP |
| Overall Length (mm) | 150.0000 |
| Overall Height (mm) | 64.00000 |
| Shank Height (Inch) | 1 |
| Shank Width (mm) | 26.00 |
| Through Coolant | Yes |
| Modular | Yes |
| Series | TGTBQ |
| Overall Width (mm) | 32.0000 |
| Complete Blade Compatibility | TGAQ; DGAQ |
| Maximum Depth of Cut (Decimal Inch) | 1.6150 |
| Maximum Workpiece Diameter (Inch) | 3.23 |
| Head Length/Projection (mm) | 53.00 |
