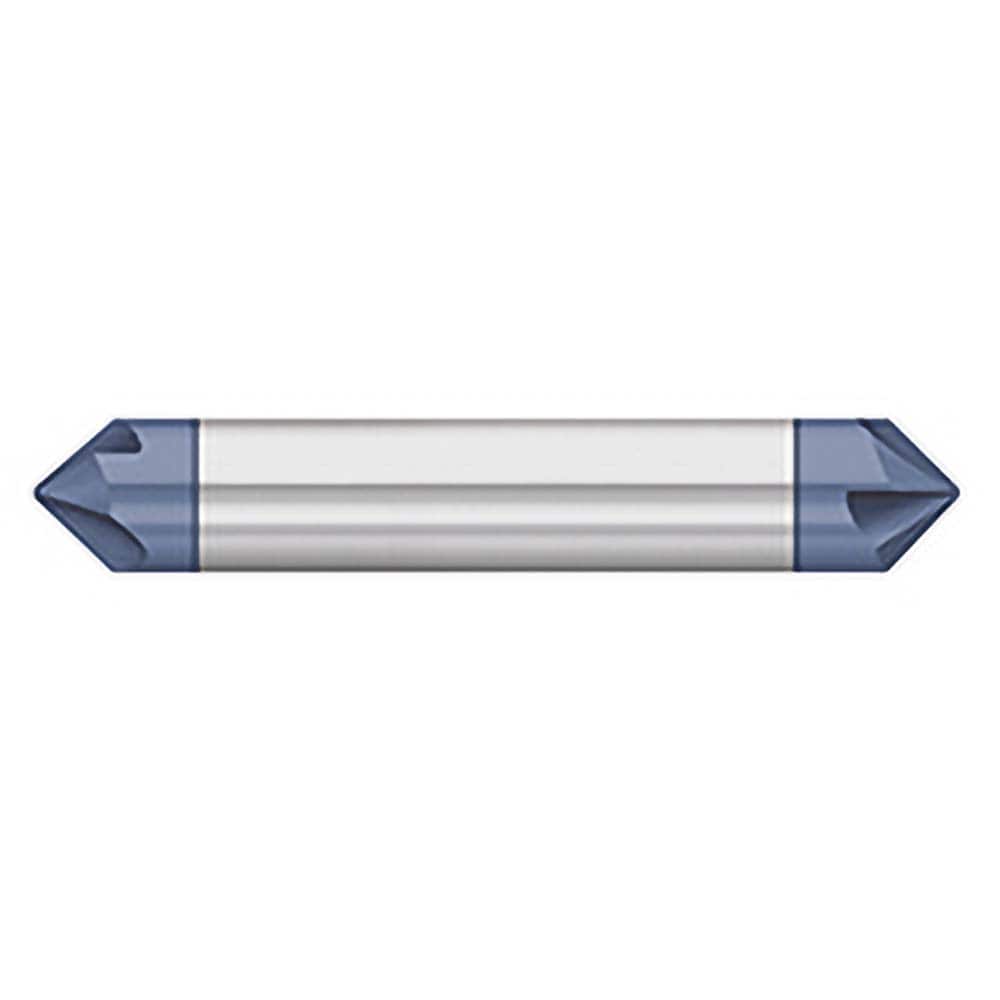

Titan USA - Chamfer Mills; Cutter Head Diameter (Inch): 1/2 ; Included Angle B: 30 ; Included Angle A: 120 ; Chamfer Mill Material: Solid Carbide ; Chamfer Mill Finish/Coating: AlTiN ; Overall Length (Inch): 3
Item #: 19542455
Brand: Titan USA
Model #: TC88197
Product Specifications
Chamfer Mills; Cutter Head Diameter (Inch): 1/2 ; Included Angle B: 30 ; Included Angle A: 120 ; Chamfer Mill Material: Solid Carbide ; Chamfer Mill Finish/Coating: AlTiN ; Overall Length (Inch): 3
| Cutter Head Diameter (Inch) | 1/2 |
| Included Angle B | 30 |
| Included Angle A | 120 |
| Chamfer Mill Material | Solid Carbide |
| Chamfer Mill Finish/Coating | AlTiN |
| Overall Length (Inch) | 3 |
| Shank Diameter (Inch) | 1/2 |
| Number of Flutes | 4 |
| End Type | Double |
| Length of Cut (Decimal Inch) | 0.1210 |
| Cutting Direction | Right Hand |
| Shank Diameter (Decimal Inch) | 1/2 |
| Overall Length (Decimal Inch) | 3 |
