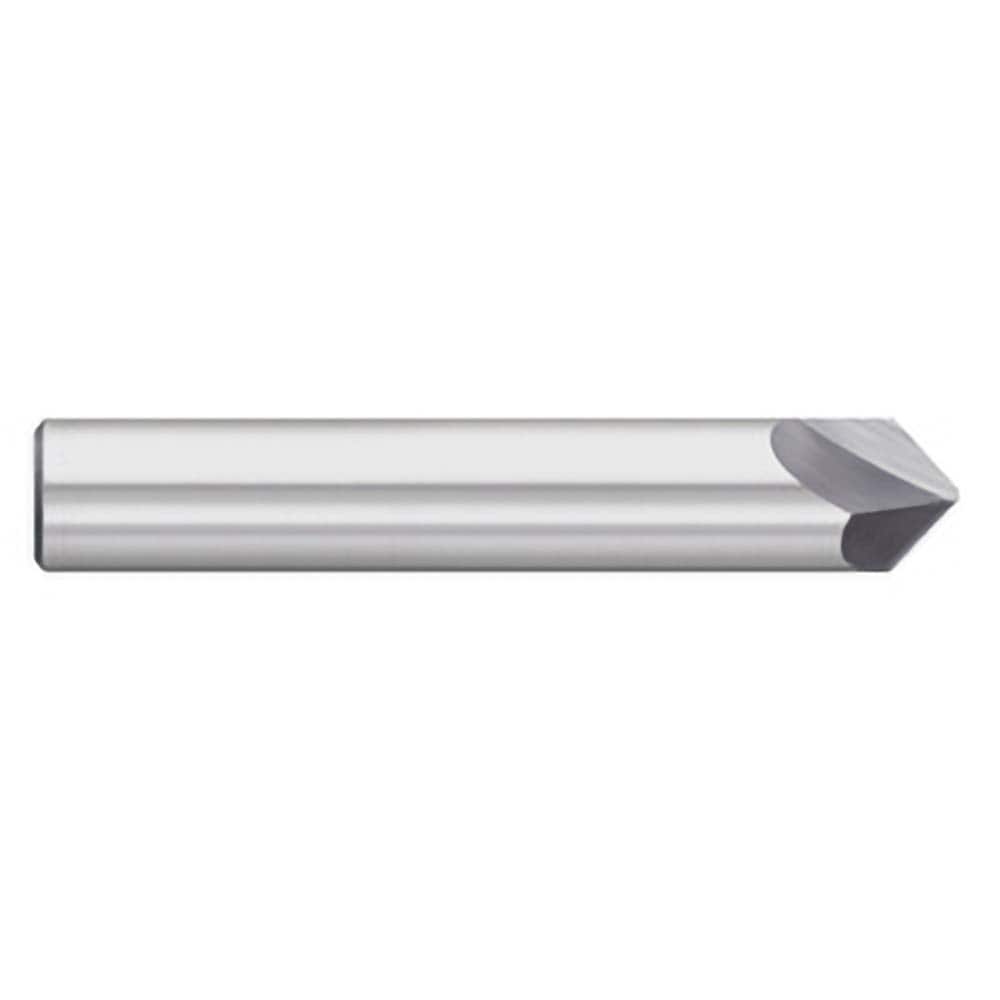

Titan USA - Chamfer Mills; Cutter Head Diameter (Inch): 1/8 ; Included Angle B: 49 ; Included Angle A: 82 ; Chamfer Mill Material: Solid Carbide ; Chamfer Mill Finish/Coating: Uncoated ; Overall Length (Inch): 1-1/2
Item #: 19543214
Brand: Titan USA
Model #: TC87612
Product Specifications
Chamfer Mills; Cutter Head Diameter (Inch): 1/8 ; Included Angle B: 49 ; Included Angle A: 82 ; Chamfer Mill Material: Solid Carbide ; Chamfer Mill Finish/Coating: Uncoated ; Overall Length (Inch): 1-1/2
| Cutter Head Diameter (Inch) | 1/8 |
| Included Angle B | 49 |
| Included Angle A | 82 |
| Chamfer Mill Material | Solid Carbide |
| Chamfer Mill Finish/Coating | Uncoated |
| Overall Length (Inch) | 1-1/2 |
| Shank Diameter (Inch) | 1/8 |
| Number of Flutes | 2 |
| End Type | Single |
| Length of Cut (Decimal Inch) | 0.0600 |
| Cutting Direction | Right Hand |
| Shank Diameter (Decimal Inch) | 1/8 |
| Overall Length (Decimal Inch) | 1-1/2 |
