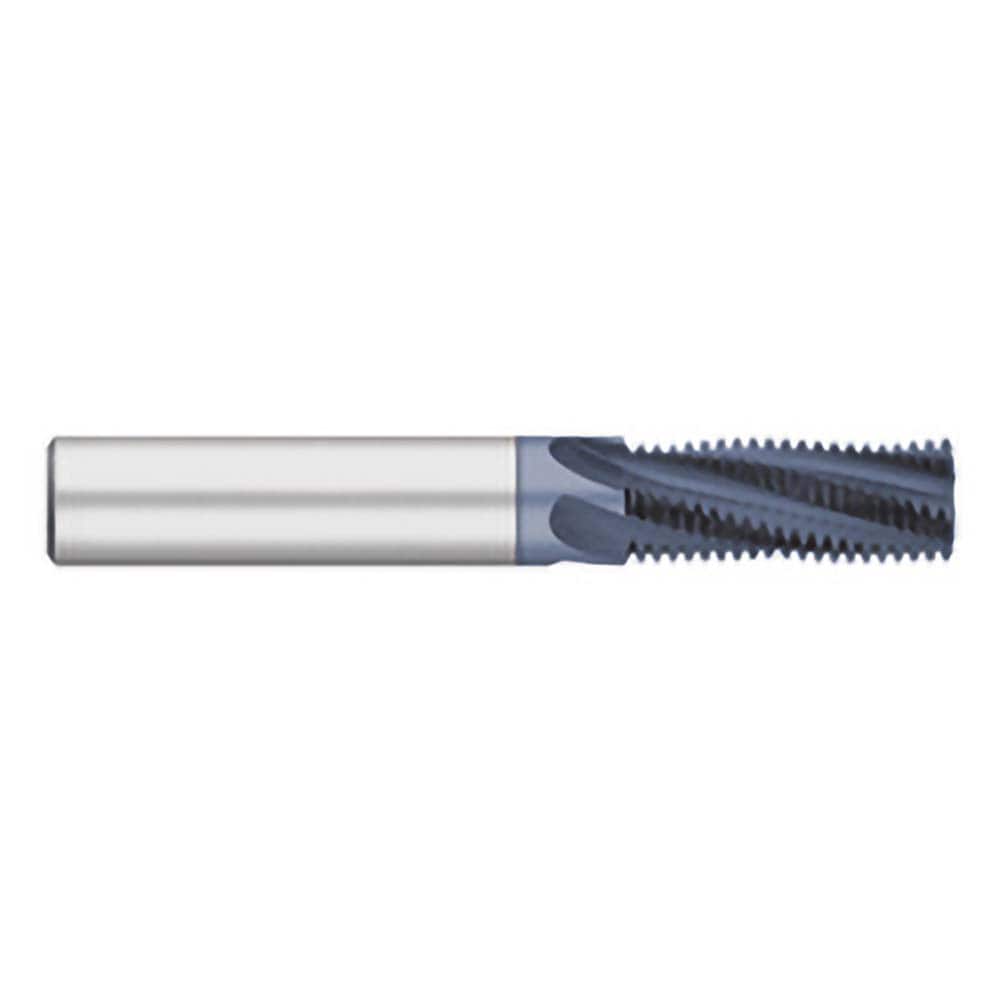

Titan USA - 4-40 Internal/External 40 TPI 1/8" Shank 3-Flute Solid Carbide Helical Flute Thread Mill
Item #: 19544329
Brand: Titan USA
Model #: TC83998
Product Specifications
| Threads Per Inch | 40 |
| Material | Solid Carbide |
| Thread Size (Inch) | 4-40 |
| Thread Type | Internal/External |
| Shank Diameter (Decimal Inch) | 0.1250 |
| Shank Diameter (Inch) | 1/8 |
| Number of Flutes | 3 |
| Cutting Diameter (Decimal Inch) | 0.0850 |
| Length of Cut (Decimal Inch) | 0.1800 |
| Finish/Coating | AlTiN |
| Through Coolant | No |
| Minimum Nominal Diameter | #4 |
| Minimum Nominal Diameter (Decimal Inch) | 0.1120 |
| Overall Length (Decimal Inch) | 2.00000 |
| Overall Length (Inch) | 2 |
