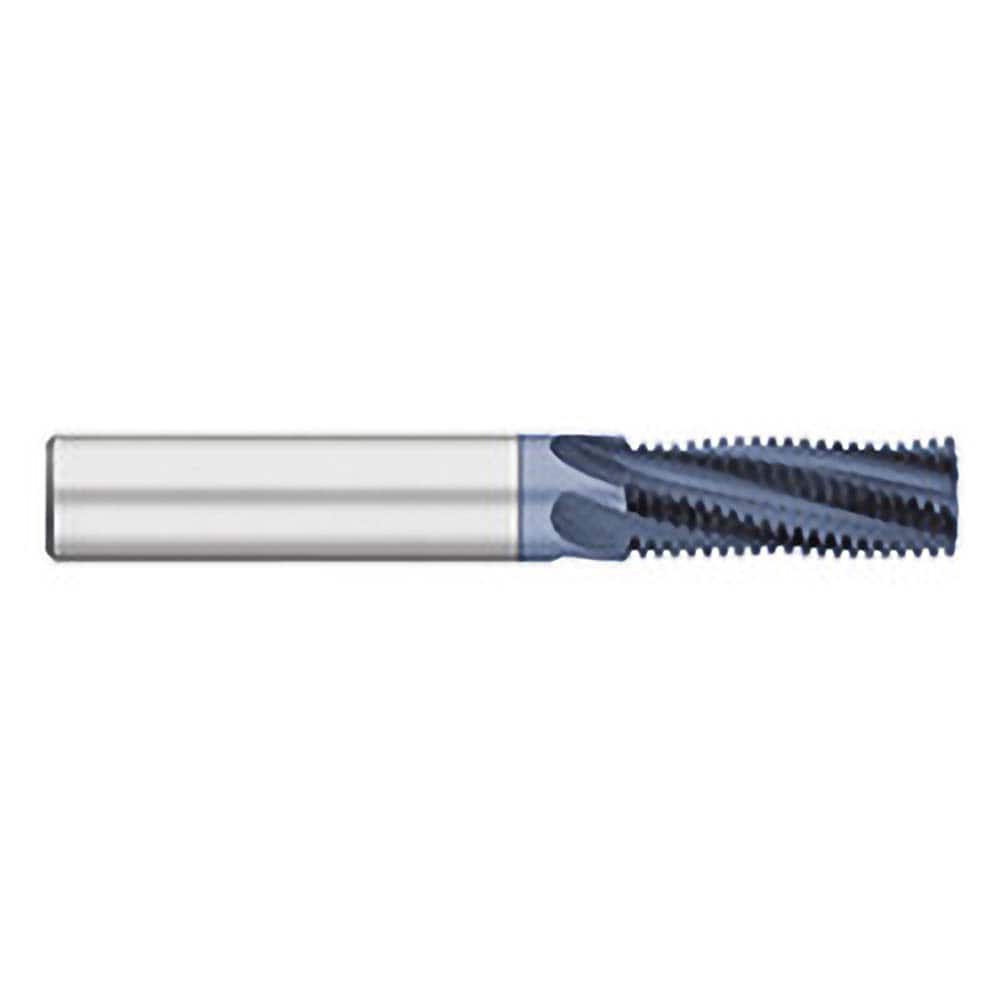

Titan USA - 3/8 - 24 Internal/External 24 TPI 5/16" Shank 4-Flute Solid Carbide Helical Flute Thread Mill
Item #: 19544345
Brand: Titan USA
Model #: TC84822
Product Specifications
| Threads Per Inch | 24 |
| Material | Solid Carbide |
| Thread Size (Inch) | 3/8 - 24 |
| Thread Type | Internal/External |
| Shank Diameter (Decimal Inch) | 0.3125 |
| Shank Diameter (Inch) | 5/16 |
| Number of Flutes | 4 |
| Cutting Diameter (Decimal Inch) | 0.2900 |
| Length of Cut (Decimal Inch) | 0.7500 |
| Length of Cut (Inch) | 3/4 |
| Finish/Coating | AlTiN |
| Through Coolant | Yes |
| Minimum Nominal Diameter | 3/8 |
| Minimum Nominal Diameter (Decimal Inch) | 0.3750 |
| Overall Length (Decimal Inch) | 3.00000 |
| Overall Length (Inch) | 3 |
