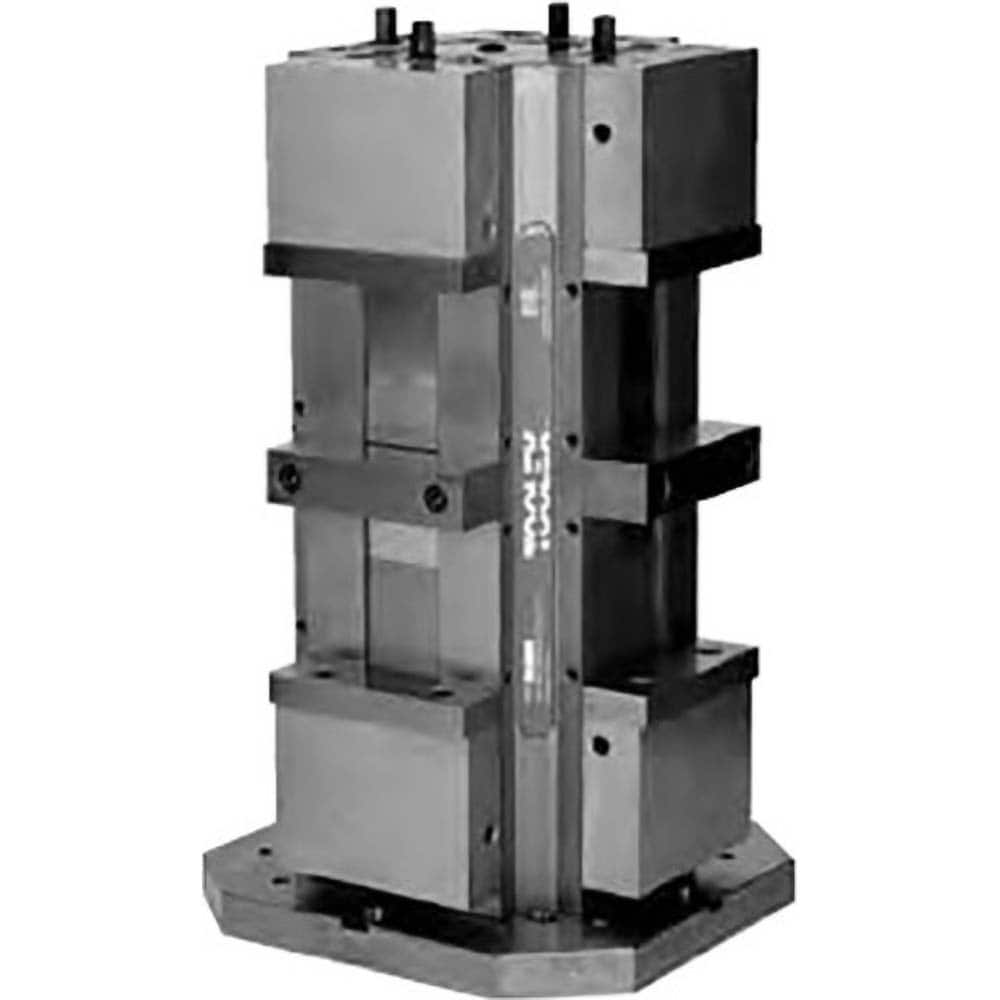

TE-CO - Machine Vises; Jaw Width (Inch): 20.5 ; Jaw Opening Capacity (Inch): 4 ; Orientation Type: Horizontal ; Number of Stations: 8 ; Base Motion Type: Stationary ; Operation Type: Manual
Item #: 19602838
Brand: TE-CO
Model #: RWS6008HJ
Product Specifications
Machine Vises; Jaw Width (Inch): 20.5 ; Jaw Opening Capacity (Inch): 4 ; Orientation Type: Horizontal ; Number of Stations: 8 ; Base Motion Type: Stationary ; Operation Type: Manual
| Jaw Width (Inch) | 20.5 |
| Jaw Opening Capacity (Inch) | 4 |
| Orientation Type | Horizontal |
| Number of Stations | 8 |
| Base Motion Type | Stationary |
| Operation Type | Manual |
| Jaw Height (mm) | 27.25 |
| Jaw Height (Inch) | 1.85 |
| Jaw Height (Decimal Inch) | 1.85 |
| Base Length (Inch) | 14 |
| Jaw Material | Steel |
| Precision | Yes |
| Overall Length (mm) | 355.6 |
| Overall Length (Inch) | 14 |
| Overall Length (Decimal Inch) | 14 |
| Base Width (Inch) | 14 |
| Base Width (Decimal Inch) | 14 |
| Vise Material | Ductile Iron |
| Base Height (Inch) | 1.4 |
| Base Height (Decimal Inch) | 1.4 |
| Maximum Clamping Force (Ft/Lb) | 12000 |
| Product Line | Machine Tool Accessories |
| Overall Width | 14 |
| Overall Height (mm) | 22.65 |
| Overall Height (Inch) | 22 |
| Overall Height (Decimal Inch) | 22.65 |
| Jaw Style | Detachable |
| Includes | Includes RWS6008 vise, Vise includes (4) 3-piece carrier jaw sets (SCJ6035) and (4) 2-piece hard jaw sets (SHJ6000). |
