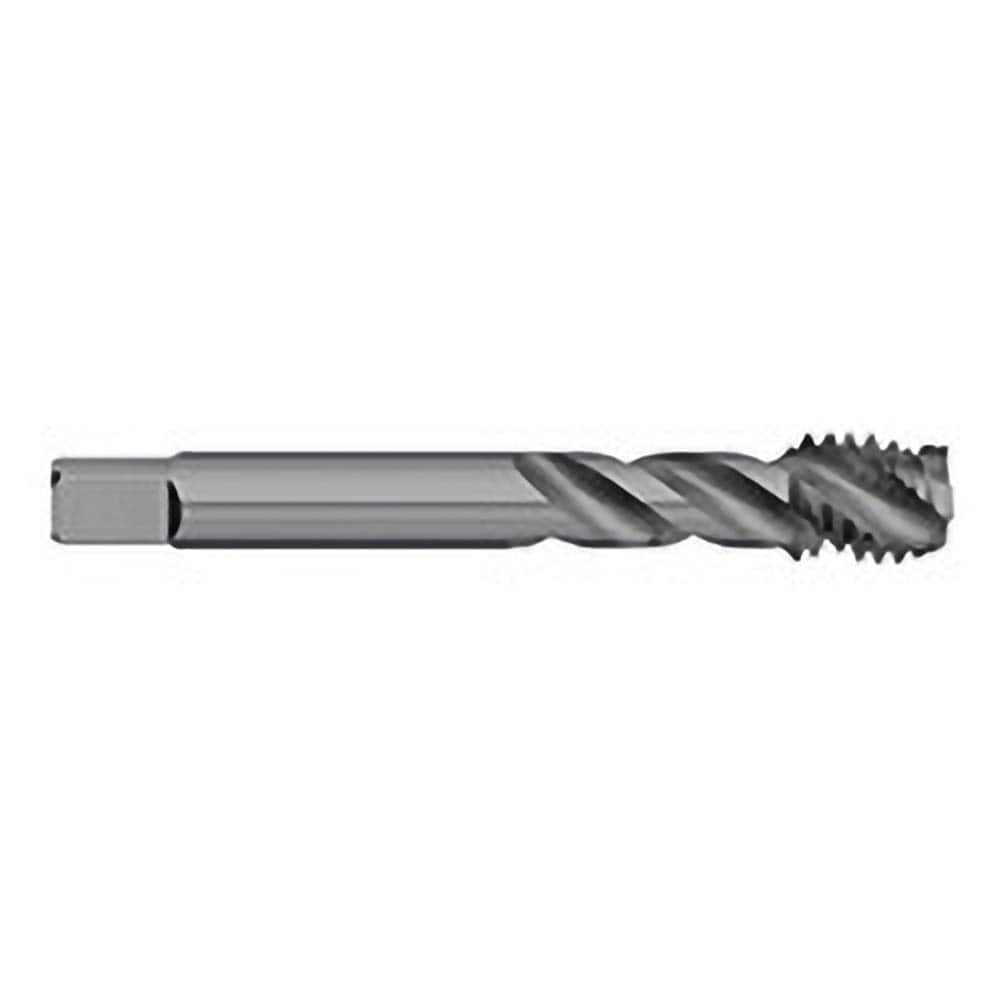

Spiral Flute Tap: 5/8-11, UNC, 4 Flute, Semi-Bottoming, 2B & 3B Class of Fit, Powdered Metal, Steam Oxide Finish 0.64″ Thread Length, 3.8125″ OAL, Right Hand Flute, Right Hand Thread, H3, Series 799
Item #: 19616119
Brand: Titan USA
Model #: TT97577
Product Specifications
| Material | Powdered Metal |
| Coating/Finish | Steam Oxide |
| Thread Size (Inch - 0 Decimals) | 5/8-11 |
| Thread Standard | UNC |
| Thread Limit | H3 |
| Thread Direction | Right Hand |
| Thread Length (Decimal Inch) | 0.6400 |
| Thread Length (Inch) | 41/64 |
| Overall Length (Inch) | 3-13/16 |
| Overall Length (Decimal Inch) | 3.8125 |
| Chamfer | Semi-Bottoming |
| Flute Direction | Right Hand |
| Helix Angle | 45 |
| Shank Diameter (Decimal Inch) | 0.4800 |
| Square Length (Inch) | 9/16 |
| Square Size (Decimal Inch) | 0.3600 |
| Series | 799 |
| Coolant Through | No |
| Number Of Flutes | 4 |
| Class Of Fit | 2B; 3B |
