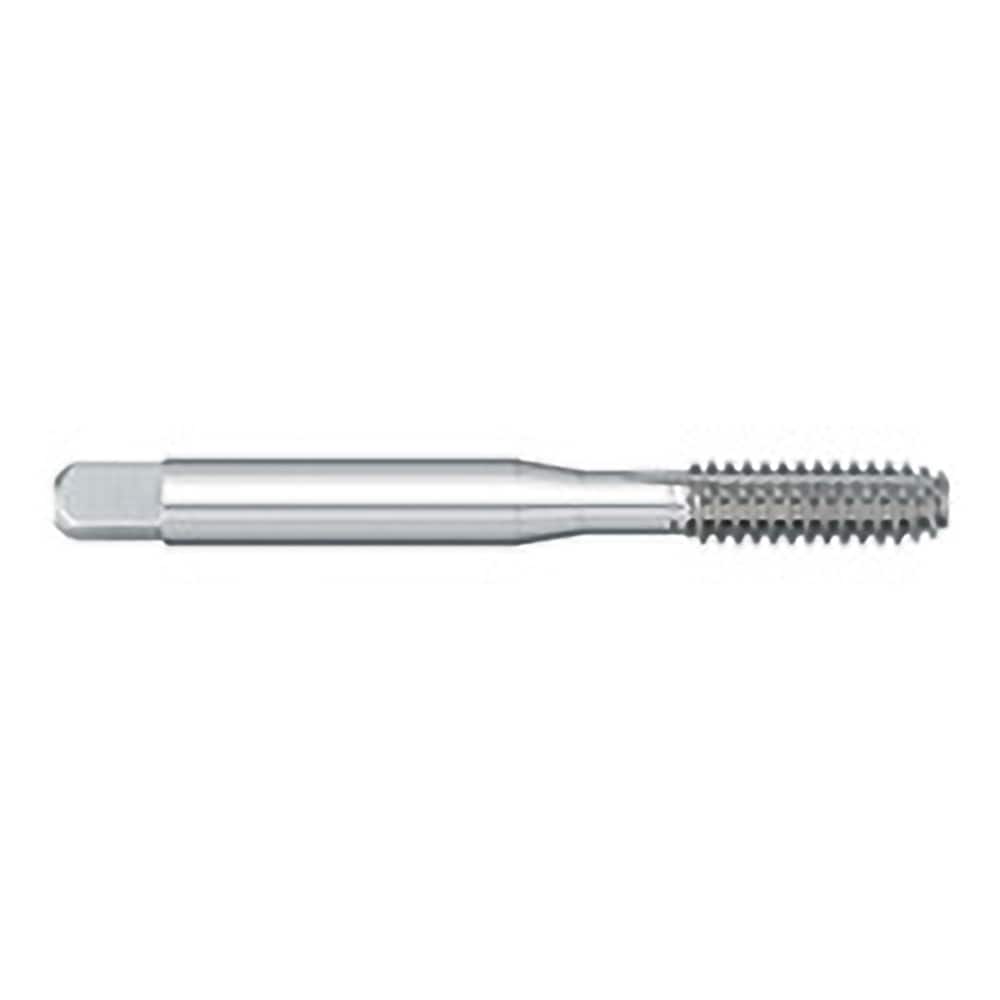

Titan USA - Thread Forming Taps; Thread Size (Inch): #12-28 ; Class of Fit: 2B/3B ; Thread Limit: H4 ; Chamfer: Plug ; Finish/Coating: Uncoated ; Material: High Speed Steel
Item #: 19617323
Brand: Titan USA
Model #: TT82869
Product Specifications
Thread Forming Taps; Thread Size (Inch): #12-28 ; Class of Fit: 2B/3B ; Thread Limit: H4 ; Chamfer: Plug ; Finish/Coating: Uncoated ; Material: High Speed Steel
| Thread Size (Inch) | #12-28 |
| Class of Fit | 2B/3B |
| Thread Limit | H4 |
| Chamfer | Plug |
| Finish/Coating | Uncoated |
| Material | High Speed Steel |
| Overall Length (Decimal Inch) | 2.37500 |
| Overall Length (Inch) | 2-3/8 |
| Tap Type | Thread Forming |
| Thread Standard | UNF |
| Thread Length (Decimal Inch) | 0.9375 |
| Thread Length (Inch) | 15/16 |
| Series/List | 876 |
| Thread Direction | Right Hand |
| Shank Diameter (Decimal Inch) | 0.2200 |
| Square Length (Inch) | 0.2813 |
| Through Coolant | NonThrough Coolant |
