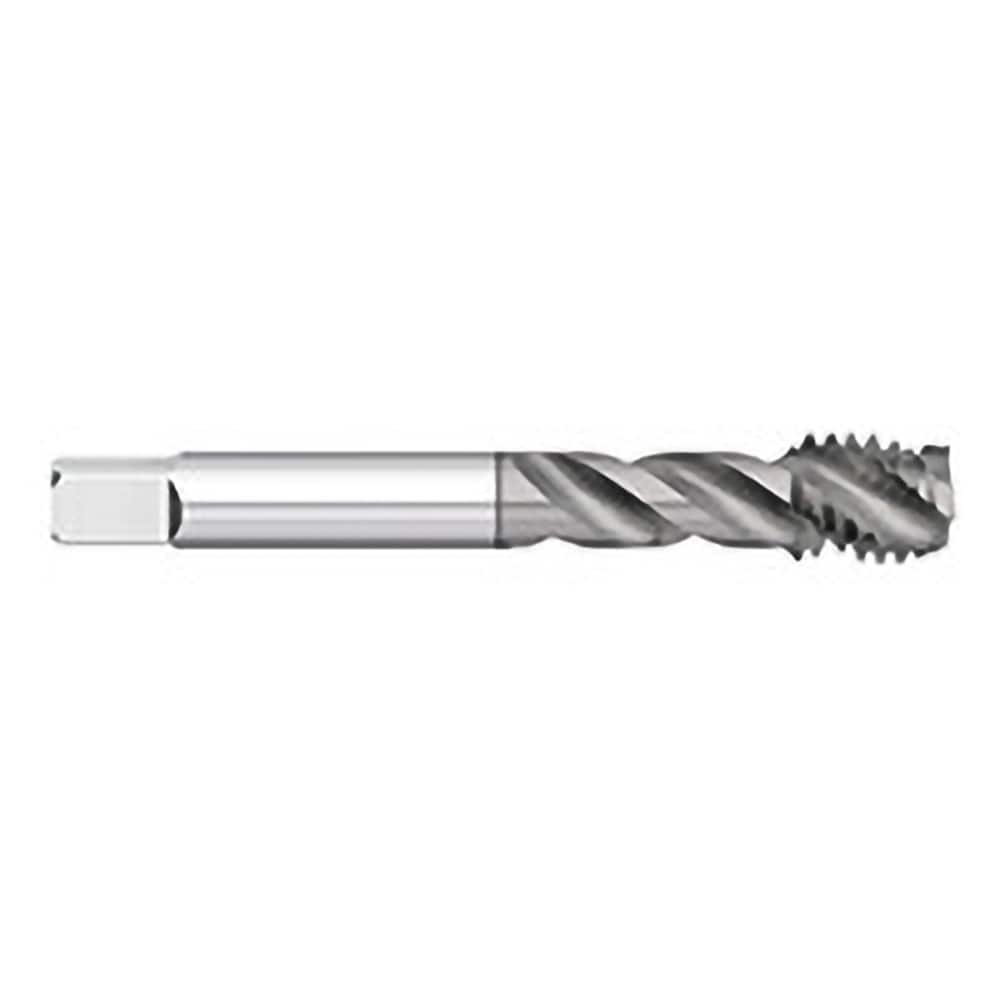

Titan USA - Spiral Flute Taps; Thread Size (Inch): #4-40 ; Chamfer: Semi-Bottoming ; Class of Fit: 2B/3B ; Thread Limit: H2 ; Number of Flutes: 2 ; Material: Powdered Metal
Item #: 19617653
Brand: Titan USA
Model #: TT97607
Product Specifications
Spiral Flute Taps; Thread Size (Inch): #4-40 ; Chamfer: Semi-Bottoming ; Class of Fit: 2B/3B ; Thread Limit: H2 ; Number of Flutes: 2 ; Material: Powdered Metal
| Thread Size (Inch) | #4-40 |
| Chamfer | Semi-Bottoming |
| Class of Fit | 2B/3B |
| Thread Limit | H2 |
| Number of Flutes | 2 |
| Material | Powdered Metal |
| Finish/Coating | TiCN |
| Thread Direction | Right Hand |
| Flute Direction | Right Hand |
| Through Coolant | NonThrough Coolant |
| Overall Length (Decimal Inch) | 1.87500 |
| Overall Length (Inch) | 1-7/8 |
| Helix Angle | 45.00 |
| Thread Standard | UNC |
| Thread Length (Decimal Inch) | 0.5630 |
| Flute Type | Spiral |
| Series/List | 781 |
| Shank Diameter (Decimal Inch) | 0.1410 |
| Square Length (Inch) | 3/16 |
