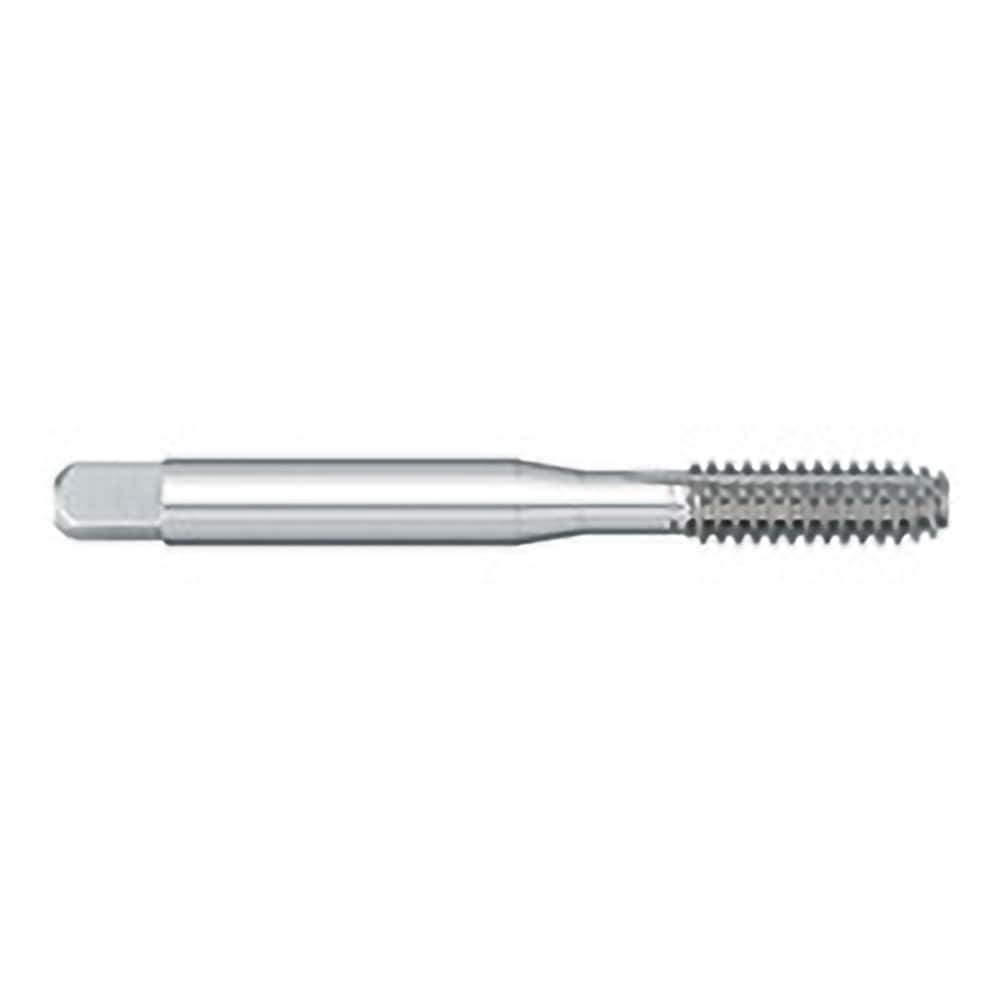

Titan USA - Thread Forming Taps; Thread Size (mm): M2x0.40 ; Class of Fit: 6H ; Thread Limit: D5 ; Chamfer: 1.5P ; Finish/Coating: Uncoated ; Material: High Speed Steel
Item #: 19618446
Brand: Titan USA
Model #: TT88380
Product Specifications
Thread Forming Taps; Thread Size (mm): M2x0.40 ; Class of Fit: 6H ; Thread Limit: D5 ; Chamfer: 1.5P ; Finish/Coating: Uncoated ; Material: High Speed Steel
| Thread Size (mm) | M2x0.40 |
| Class of Fit | 6H |
| Thread Limit | D5 |
| Chamfer | 1.5P |
| Finish/Coating | Uncoated |
| Material | High Speed Steel |
| Overall Length (Decimal Inch) | 1.75000 |
| Overall Length (Inch) | 1-3/4 |
| Tap Type | Thread Forming |
| Thread Standard | Metric Coarse |
| Thread Length (Decimal Inch) | 0.4380 |
| Series/List | 898 |
| Thread Direction | Right Hand |
| Shank Diameter (Decimal Inch) | 0.1410 |
| Square Length (Inch) | 3/16 |
| Through Coolant | NonThrough Coolant |
