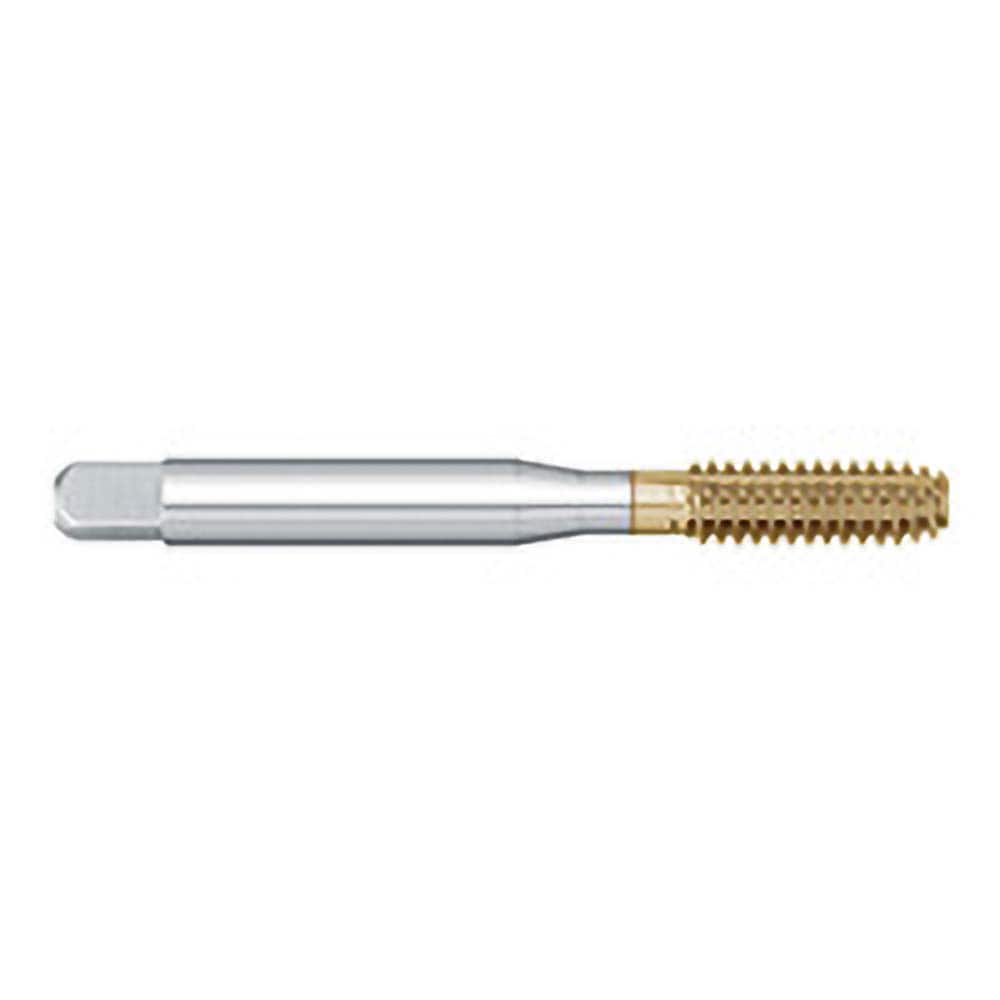

Titan USA - Thread Forming Taps; Thread Size (mm): M2.5x0.45 ; Class of Fit: 6H ; Thread Limit: D6 ; Chamfer: 1.5P ; Finish/Coating: TiN ; Material: High Speed Steel
Item #: 19619543
Brand: Titan USA
Model #: TT88582
Product Specifications
Thread Forming Taps; Thread Size (mm): M2.5x0.45 ; Class of Fit: 6H ; Thread Limit: D6 ; Chamfer: 1.5P ; Finish/Coating: TiN ; Material: High Speed Steel
| Thread Size (mm) | M2.5x0.45 |
| Class of Fit | 6H |
| Thread Limit | D6 |
| Chamfer | 1.5P |
| Finish/Coating | TiN |
| Material | High Speed Steel |
| Overall Length (Decimal Inch) | 1.81250 |
| Overall Length (Inch) | 1-13/16 |
| Tap Type | Thread Forming |
| Thread Standard | Metric Coarse |
| Thread Length (Decimal Inch) | 0.5000 |
| Thread Length (Inch) | 1/2 |
| Series/List | 798 |
| Thread Direction | Right Hand |
| Shank Diameter (Decimal Inch) | 0.1410 |
| Square Length (Inch) | 3/16 |
| Through Coolant | NonThrough Coolant |
