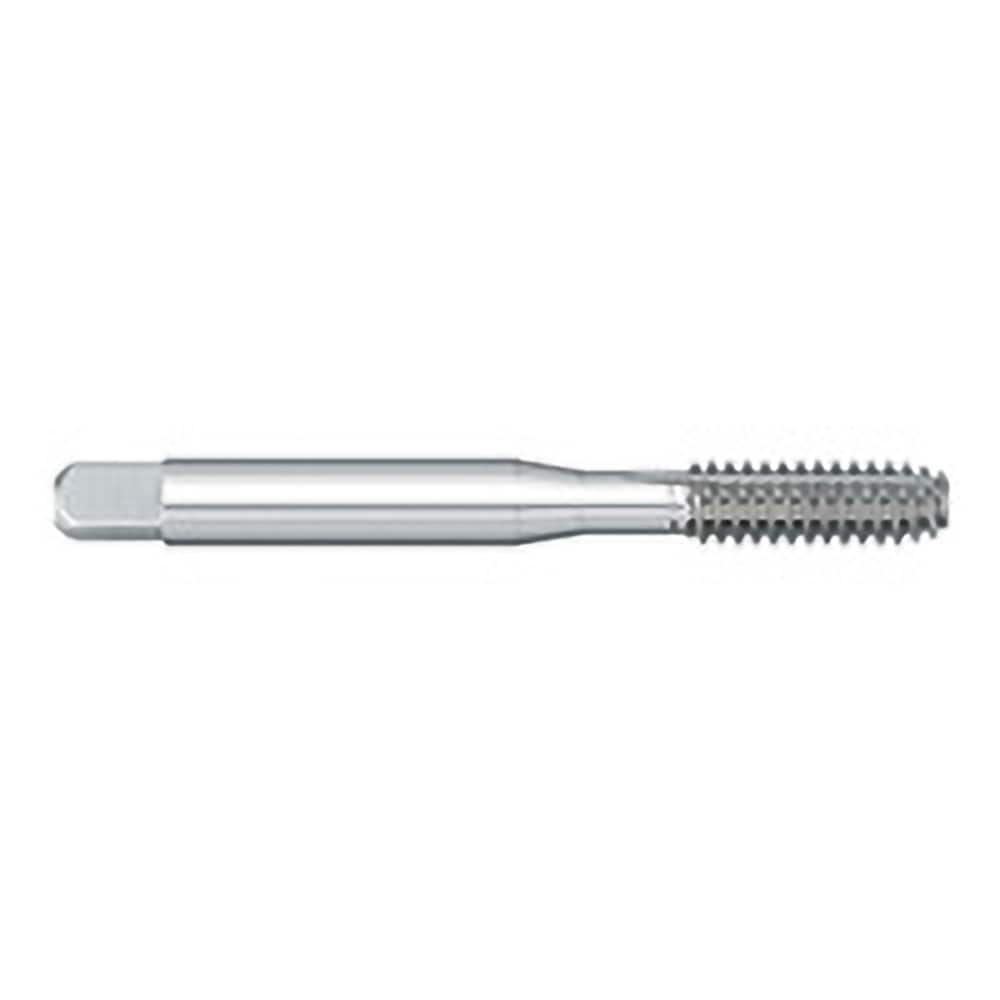

Titan USA - Thread Forming Taps; Thread Size (Inch): #4-40 ; Class of Fit: 2B/3B ; Thread Limit: H5 ; Chamfer: 1.5P ; Finish/Coating: Uncoated ; Material: High Speed Steel
Item #: 19620970
Brand: Titan USA
Model #: TT88323
Product Specifications
Thread Forming Taps; Thread Size (Inch): #4-40 ; Class of Fit: 2B/3B ; Thread Limit: H5 ; Chamfer: 1.5P ; Finish/Coating: Uncoated ; Material: High Speed Steel
| Thread Size (Inch) | #4-40 |
| Class of Fit | 2B/3B |
| Thread Limit | H5 |
| Chamfer | 1.5P |
| Finish/Coating | Uncoated |
| Material | High Speed Steel |
| Overall Length (Decimal Inch) | 1.87500 |
| Overall Length (Inch) | 1-7/8 |
| Tap Type | Thread Forming |
| Thread Standard | UNC |
| Thread Length (Decimal Inch) | 0.5630 |
| Series/List | 876 |
| Thread Direction | Right Hand |
| Shank Diameter (Decimal Inch) | 0.1410 |
| Square Length (Inch) | 3/16 |
| Through Coolant | NonThrough Coolant |
