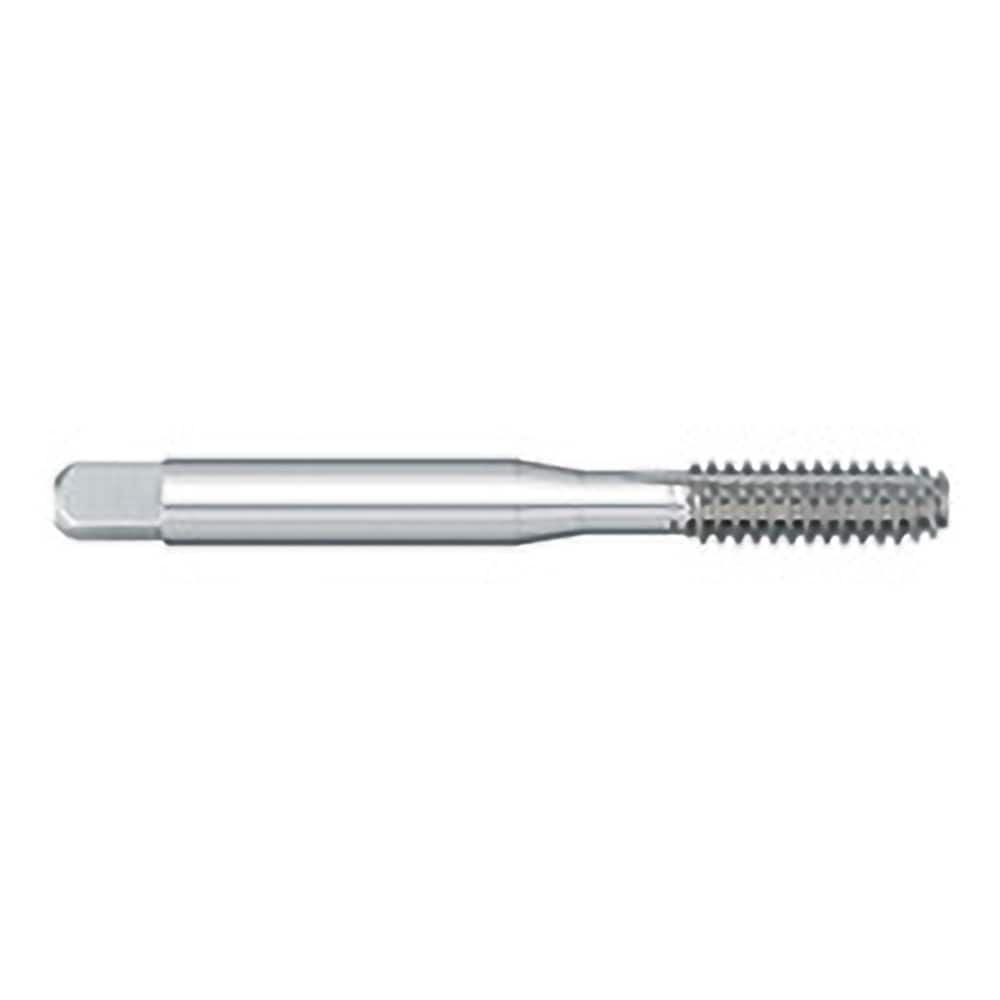

Titan USA - Thread Forming Taps; Thread Size (Inch): #1-72 ; Class of Fit: 2B/3B ; Thread Limit: H3 ; Chamfer: 1.5P ; Finish/Coating: Uncoated ; Material: High Speed Steel
Item #: 19621077
Brand: Titan USA
Model #: TT88307
Product Specifications
Thread Forming Taps; Thread Size (Inch): #1-72 ; Class of Fit: 2B/3B ; Thread Limit: H3 ; Chamfer: 1.5P ; Finish/Coating: Uncoated ; Material: High Speed Steel
| Thread Size (Inch) | #1-72 |
| Class of Fit | 2B/3B |
| Thread Limit | H3 |
| Chamfer | 1.5P |
| Finish/Coating | Uncoated |
| Material | High Speed Steel |
| Overall Length (Decimal Inch) | 1.68750 |
| Overall Length (Inch) | 1-11/16 |
| Tap Type | Thread Forming |
| Thread Standard | UNF |
| Thread Length (Decimal Inch) | 0.3750 |
| Thread Length (Inch) | 3/8 |
| Series/List | 876 |
| Thread Direction | Right Hand |
| Shank Diameter (Decimal Inch) | 0.1410 |
| Square Length (Inch) | 3/16 |
| Through Coolant | NonThrough Coolant |
