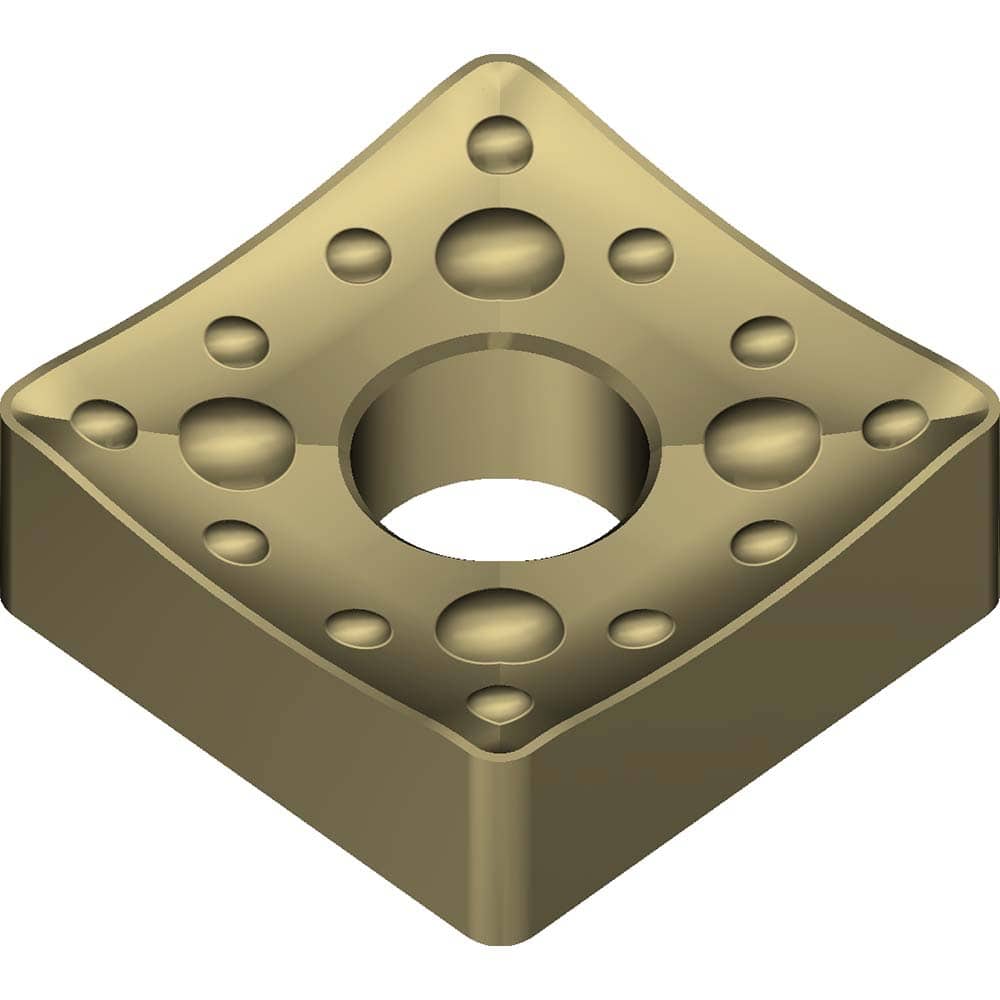

SNMM1066ENP AC8020P Carbide Turning Insert Absotech Finish, 1-1/4″ Long, 1-1/4″ Inscribed Circle, 0.0945″ Corner Radius, 0.3748″ Thick, Series AC8020P
Item #: 19638774
Brand: Sumitomo
Model #: 19W1500
Product Specifications
| Insert Style | SNMM |
| Insert Shape Code | S |
| Insert Size Code | 1066 |
| Clearance Code | N |
| Tolerance Code | M |
| Insert Material | Solid Carbide |
| Manufacturer Grade | AC8020P |
| Inscribed Circle (Inch) | 1-1/4 |
| Insert Holding Method | Pin; Clamp |
| Insert Thickness (Decimal Inch) | 0.3748 |
| Corner Radius (Decimal Inch) | 0.0945 |
| Included Angle | 90.0 |
| Relief Angle | 0 |
| Series | AC8020P |
| Coating Process | CVD |
| Rake | Negative |
| Insert Length (Inch) | 1-1/4 |
| Primary Workpiece Material | Steel |
| Secondary Workpiece Material | Steel |
| Iso Code | SNMM310924N-MP |
| Manufacturers Catalog Number | SNMM1066ENP-AC8020P |
| Material Grade | P20 |
| Chip Breaker | ENP |
| Coating/Finish | Absotech |
