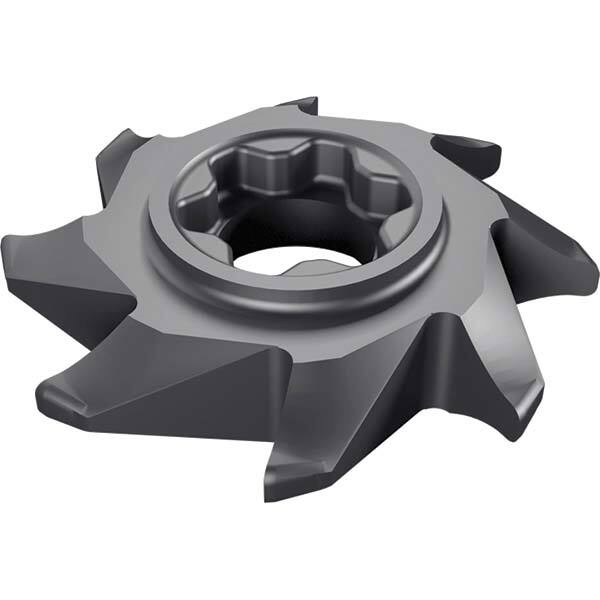

Iscar - SD D32-M1.50-NO6-SP15 Carbide Profile Mill Tip Insert
Item #: 19681402
Brand: Iscar
Model #: 5668656
Product Specifications
| Series | SD |
| Milling Tip Style | SD-SP |
| Milling Tip Type | Profile Mill |
| Material | Carbide |
| Cutting Diameter (mm) | 32 |
| Cutting Diameter (Decimal Inch) | 1.2590 |
| Manufacturer's Grade | IC908 |
| Depth of Cut (mm) | 3.50 |
| Depth of Cut (Decimal Inch) | 0.1370 |
| Number of Flutes | 8 |
| Coating | TiAIN |
| Coating Process | PVD |
| Cutting Width (mm) | 4.400 |
| Cutting Width (Decimal Inch) | 0.1730 |
| Overall Length (Decimal Inch) | 0.30300 |
| Finish/Coating | TiAIN |
