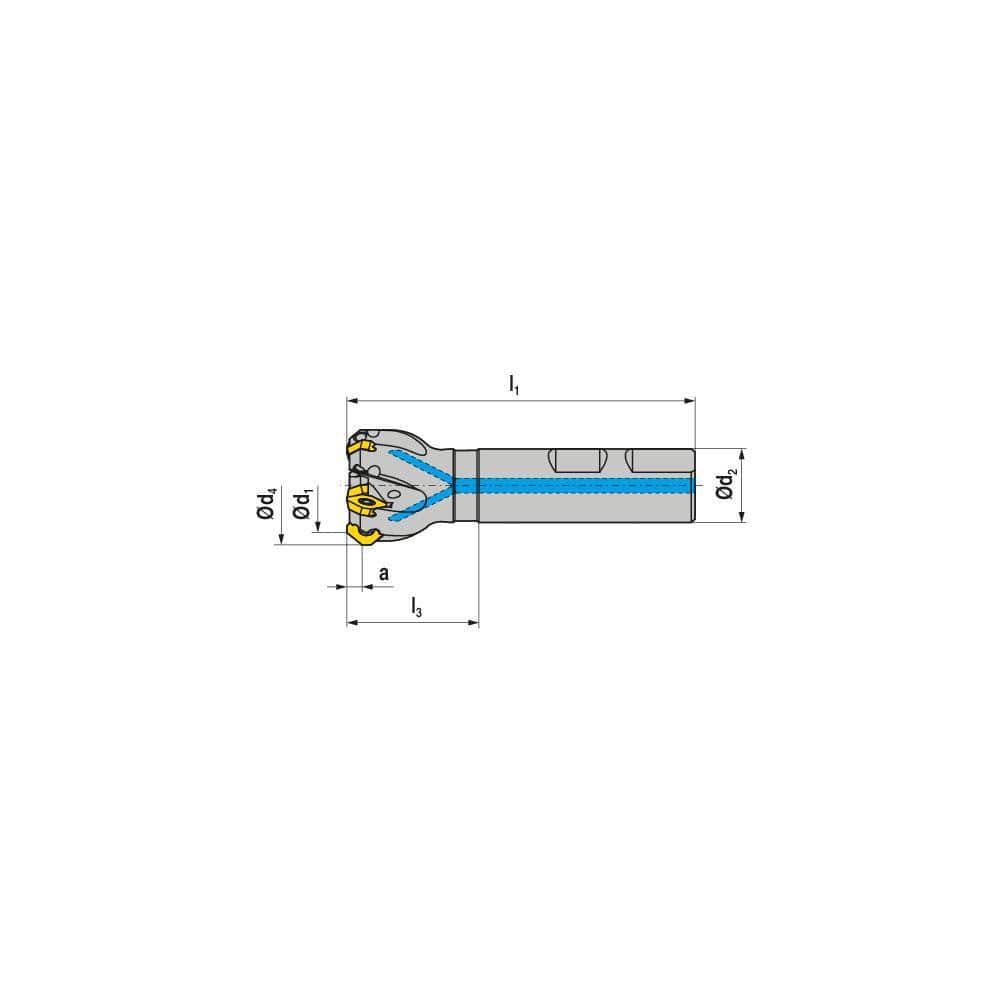

Indexable Chamfer & Angle End Mills; Minimum Cutting Diameter (Inch): 3/4; Minimum Cutting Diameter (Decimal Inch): 0.7500; Maximum Cutting Diameter (Decimal Inch): 1.0800; Lead Angle: 45; Maximum Depth of Cut (Decimal Inch): 0.1570; Compatible Insert Siz
Item #: 19725936
Brand: Ceratizit
Model #: 5866607503
Product Specifications
| Compatible Insert Size Code | SD.. 0903.. |
| Shank Type | Weldon Flat |
| Shank Taper Size | None |
| Number Of Cutter Inserts | 3 |
| Cutting Direction | Right Hand |
| Insert Holding Method | Screw |
| Overall Length (Decimal Inch) | 3.5000 |
| Series | C270-09 |
| Number Of Flutes | 3 |
