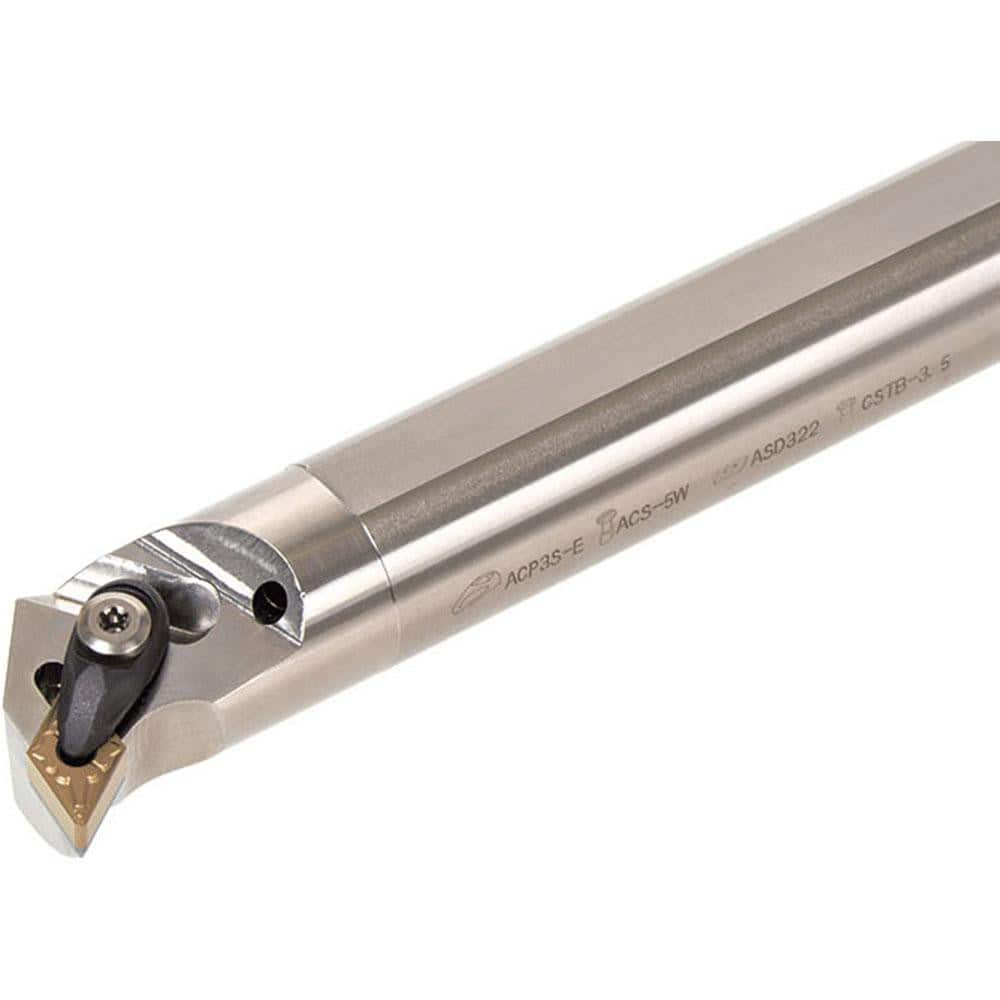

Indexable Boring Bar: A25R-ADUNL1104-D320, 32.00 mm Min Bore, 25.00 mm Shank Dia, 93.00° N/A Steel 200.0000″ OAL, Clamp,
Item #: 19742253
Brand: Tungaloy
Model #: 6733318
Product Specifications
| Minimum Bore Diameter (mm) | 32.00 |
| Maximum Bore Depth (mm) | 100.00 |
| Toolholder Style | ADUN |
| Tool Material | Steel |
| Shank Diameter (Decimal Inch) | 25.0000 |
| Shank Diameter (mm) | 25.00 |
| Shank Diameter (Inch) | 25 |
| Overall Length (Decimal Inch) | 200.0000 |
| Overall Length (mm) | 200.00 |
| Overall Length (Inch) | 200 |
| Compatible Insert Size Code | 33 |
| Insert Holding Method | Clamp |
| Compatible Insert Shape | Diamond |
| Insert Included | No |
| Rake | Negative |
| Cutting Direction | Left Hand |
| Rake Angle | -13.00 |
| Lead Angle | 93.00 |
| Series | ADUN |
| Insert Inscribed Circle (Inch) | 3/8 |
| Insert Inscribed Circle (Decimal Inch) | 0.3750 |
| Compatible Insert Thickness (Decimal Inch) | 0.1870 |
| Cutting Tool Application | Boring |
| Center to Cutting Edge (mm) | 17.00 |
| Primary Workpiece Material | Universal |
| Coolant Through | Yes |
