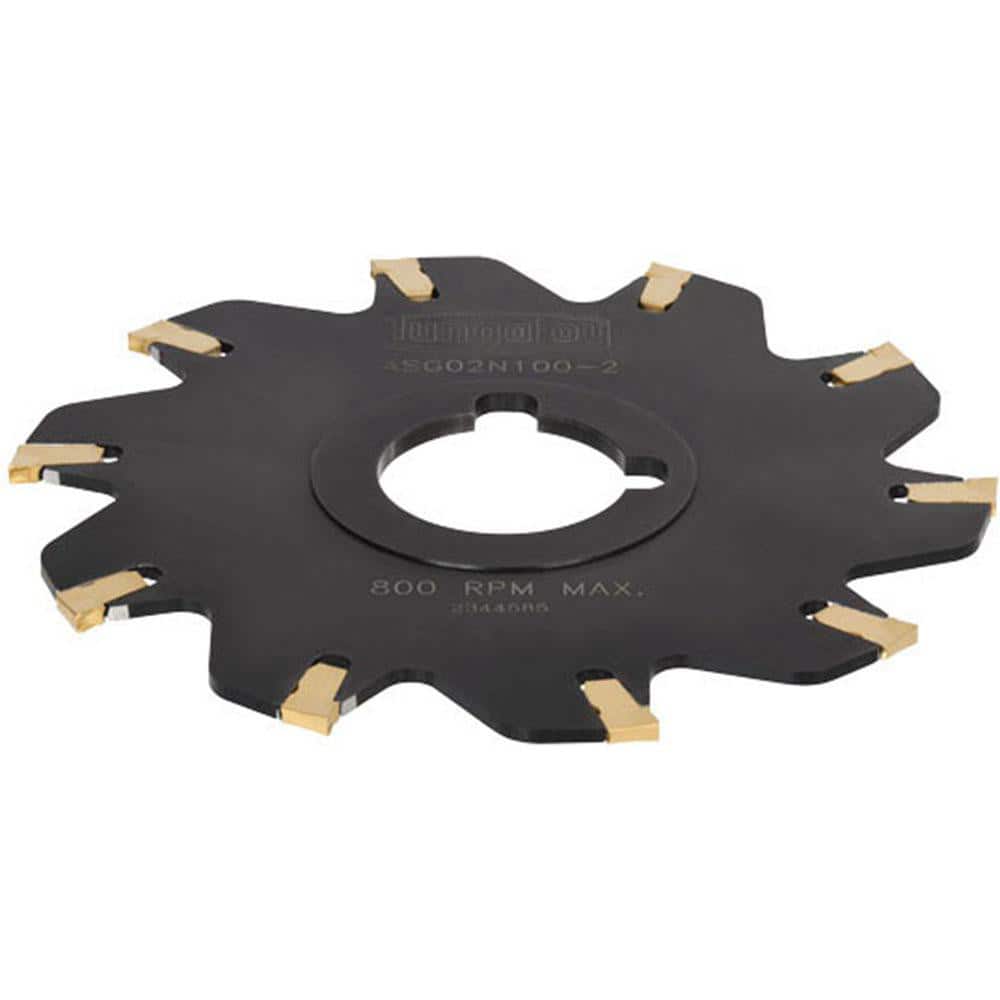

Indexable Slotting Cutter: 0.63'' Cutting Width, 4.9212'' Cutter Dia, Arbor Hole Connection, 1.181'' Depth of Cut, 1.25'' Hole, Neutral Self Clamping, Uses 12 SS Inserts, 12 Teeth, Straight, Positive, Steel, Black Oxide Finish
Item #: 19812684
Brand: Tungaloy
Model #: 2350542
Product Specifications
| Connection Type | Arbor Hole |
| Cutting Width (Decimal Inch) | 0.6300 |
| Maximum Depth of Cut (Decimal Inch) | 1.1810 |
| Hole Diameter (Inch) | 1-1/4 |
| Hole Diameter (Decimal Inch) | 1.2500 |
| Cutter Diameter (Decimal Inch) | 4.9212 |
| Cutting Direction | Neutral |
| Insert Holding Method | Self Clamping |
| Number Of Cutter Inserts | 12 |
| Compatible Insert Style | SS |
| Compatible Insert Size Code | 1.N |
| Tooth Type | Straight |
| Rake | Positive |
| Tool Material | Steel |
| Series | ASG |
| Toolholder Style | ASG |
| Hub Diameter (Decimal Inch) | 2.5197 |
| Hub Diameter (mm) | 2.51 |
| Tool Application | Slotting |
| Primary Workpiece Material | Universal |
| Number Of Teeth | 12 |
| Coolant Through | No |
| Coating/Finish | Black Oxide |
