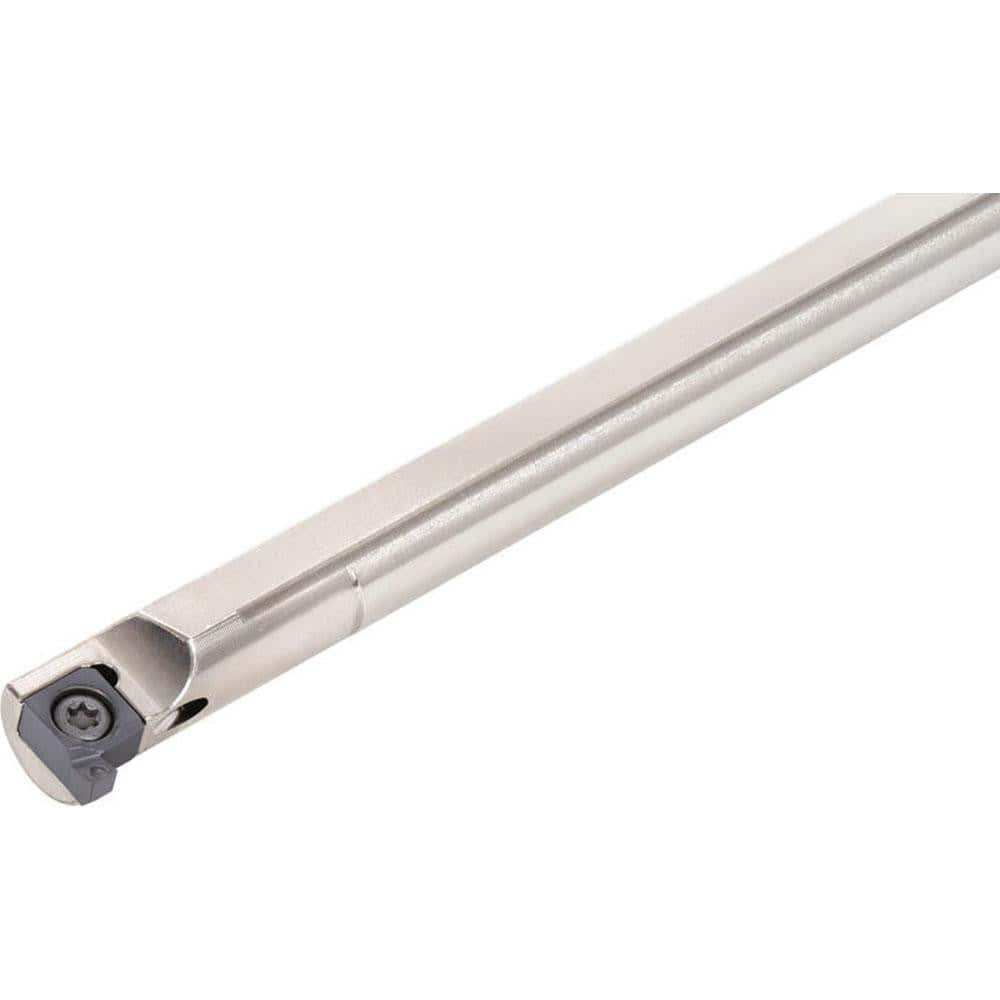

Indexable Grooving Toolholder: A10K-SNGR08-D140, Uses 8 Inserts, Through Coolant
Item #: 19812692
Brand: Tungaloy
Model #: 6789266
Product Specifications
| Toolholder Type | Internal Grooving |
| Insert Seat Size | 8 |
| Cutting Direction | Right Hand |
| Maximum Depth of Cut (mm) | 2.00 |
| Minimum Groove Width (mm) | 1.50 |
| Maximum Groove Width (mm) | 3.50 |
| Toolholder Style | SNG |
| Insert Holding Method | Screw |
| Compatible Insert Size Code | 8 |
| Shank Height (mm) | 9.00 |
| Series | SNG |
| Shank Length (mm) | 125.00 |
| Overall Length (mm) | 125.00 |
| Cutting Tool Application | Grooving |
| Center to Cutting Edge (mm) | 7.60 |
| Minimum Hole Diameter (mm) | 14.00 |
| Minimum Hole Diameter (Decimal Inch) | 14.0000 |
| Head Height (Decimal Inch) | 9.0000 |
| Head Height (Inch) | 9 |
| Head Length (mm) | 15.00 |
| Primary Workpiece Material | Universal |
| Toolholder Material | Steel |
| Coolant Through | Yes |
