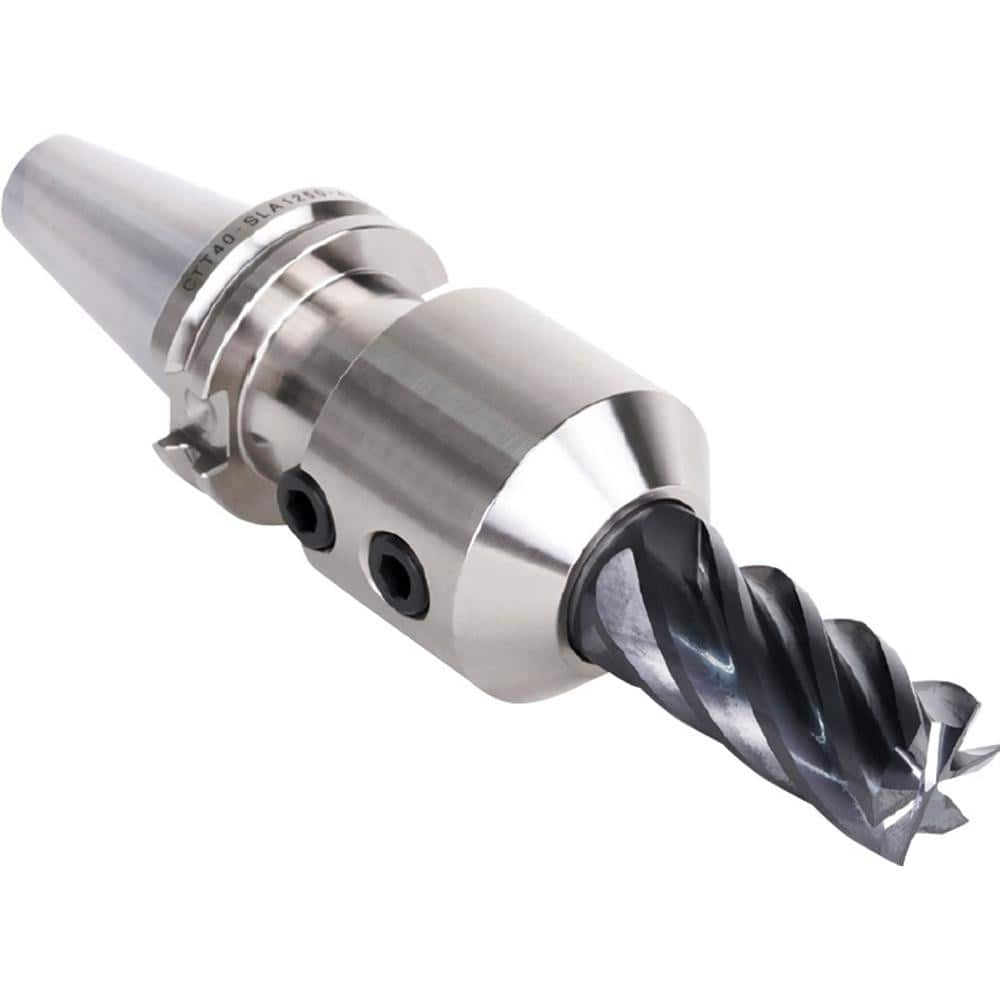

End Mill Holder: CAT40 Dual Contact Taper Shank, 5/8″ Hole 6″ Projection, 1-1/2″ Nose Dia
Item #: 19840495
Brand: Samchully
Model #: CTT40SLA0625600
Product Specifications
| Shank Type | Dual Contact Taper |
| Modular Connection Size | CTT40 |
| Shank Diameter (Decimal Inch) | 1.5000 |
| Shank Diameter (Inch) | 1-1/2 |
| Overall Length (Decimal Inch) | 8.6900 |
| Taper Size | CAT40 |
| Hole Diameter (Decimal Inch) | 0.6250 |
| Hole Diameter (Inch) | 5/8 |
| Nose Diameter (Decimal Inch - 4 Decimals) | 1.5000 |
| Nose Diameter (Inch) | 1-1/2 |
| Projection (Inch) | 6 |
| Projection (Decimal Inch - 4 Decimals) | 6.0000 |
