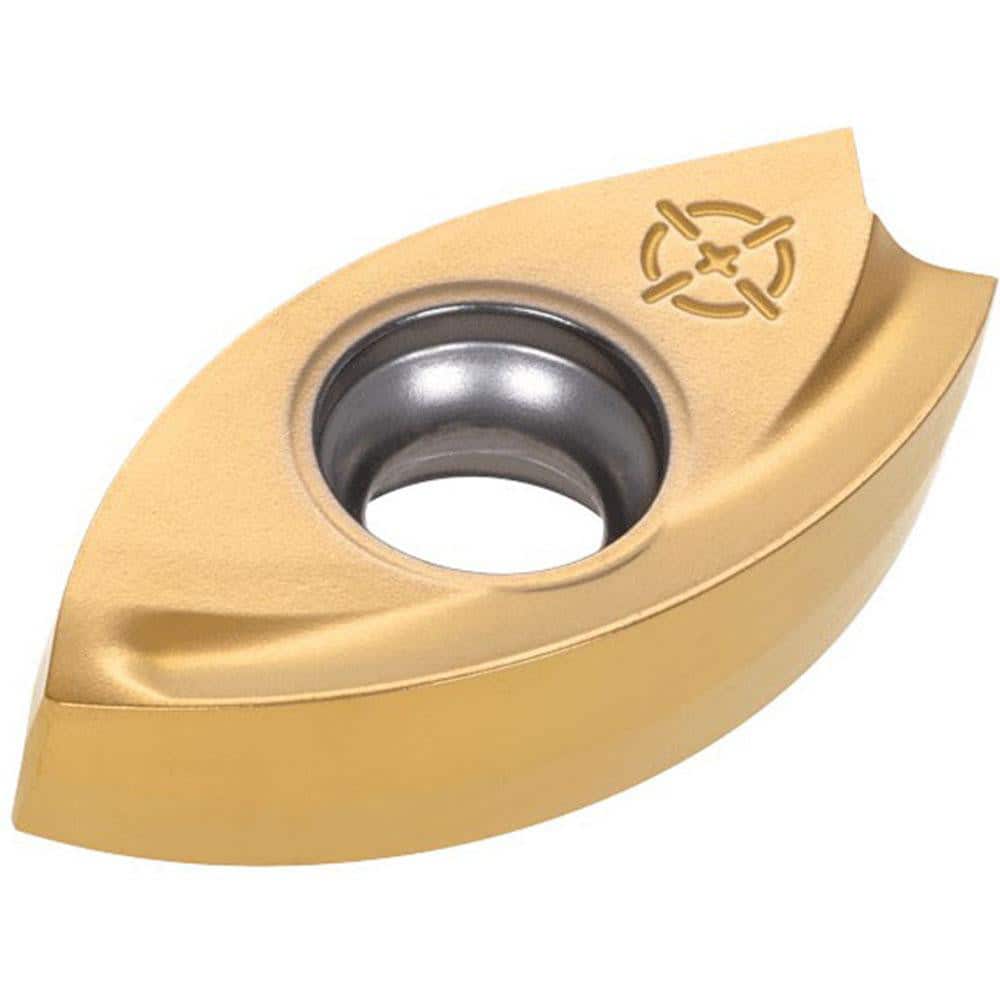

Milling Insert: APH730, Solid Carbide N/A Finish,
Item #: 19857226
Brand: Tungaloy
Model #: 6128065
Product Specifications
| Insert Style | ZRBU |
| Insert Size Code | 062 |
| Insert Material | Solid Carbide |
| Manufacturer Grade | APH730 |
| Thickness Range (Decimal Inch) | 0.1000 to 0.1250 |
| Insert Hand | Neutral |
| Series | ZRBU |
| Coating Process | PVD |
| Maximum Depth of Cut (Decimal Inch) | 0.4700 |
| Number Of Cutting Edges | 1 |
| Cutting Edge Effective Length (Decimal Inch) | 0.5860 |
| Insert Shape | Irregular |
| Rake | Negative |
| Primary Workpiece Material | Steel |
| Primary Workpiece Material Code | P |
| Secondary Workpiece Material | Super-Alloys & Titanium; Stainless Steel; Steel |
| Secondary Workpiece Material Code | S; H; K; M |
| Coating/Finish | Coated |
| Thickness (Decimal Inch - 4 Decimals) | 0.1180 |
