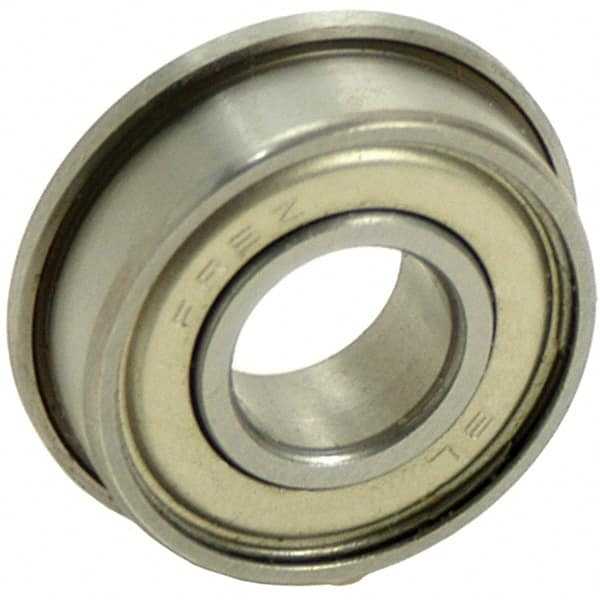

Tritan - Radial Ball Bearings; Type: Miniature ; Style: Double Shield ; Bore Diameter (Decimal Inch): 0.3150 ; Bore Diameter (mm): 8.00 ; Outside Diameter (mm): 22.00 ; Outside Diameter (Decimal Inch): 0.8700
Item #: 19858653
Brand: Tritan
Model #: SSF608 ZZ FM222
Product Specifications
Radial Ball Bearings; Type: Miniature ; Style: Double Shield ; Bore Diameter (Decimal Inch): 0.3150 ; Bore Diameter (mm): 8.00 ; Outside Diameter (mm): 22.00 ; Outside Diameter (Decimal Inch): 0.8700
| Type | Miniature |
| Style | Double Shield |
| Bore Diameter (Decimal Inch) | 0.3150 |
| Bore Diameter (mm) | 8.00 |
| Outside Diameter (mm) | 22.00 |
| Outside Diameter (Decimal Inch) | 0.8700 |
| Width (Decimal Inch) | 0.8700 |
| Width (mm) | 22.10 |
| Flange Type | With Flange |
| Number of Rows | 1 |
| Bore Type | Round |
| Static Load Capacity (Lb.) | 310 |
| Dynamic Load Capacity (Lb.) | 740 |
| Inner Ring Width (Decimal Inch) | 0.2800 |
| Minimum Operating Temperature Fahrenheit | -20 |
| Maximum Operating Temperature Fahrenheit | 212 |
