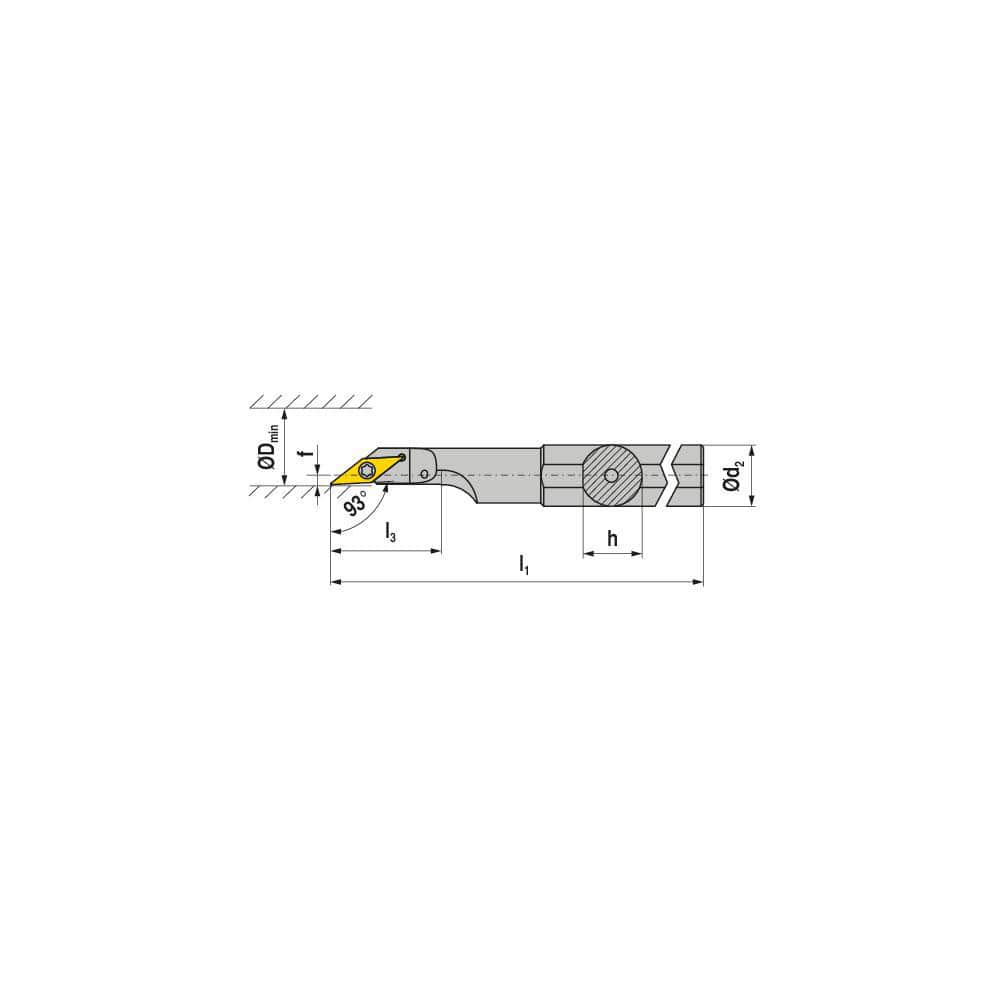

Indexable Boring Bar: A16M SVJCR 11, 22.00 mm Min Bore, 16.00 mm Shank Dia, 93.00° N/A Steel 150.0000″ OAL, Screw Clamping,
Item #: 19866771
Brand: Ceratizit
Model #: 70726216
Product Specifications
| Minimum Bore Diameter (mm) | 22.00 |
| Maximum Bore Depth (Decimal Inch) | 1.1811 |
| Toolholder Style | SVJCR |
| Tool Material | Steel |
| Shank Diameter (Decimal Inch) | 16.0000 |
| Shank Diameter (mm) | 16.00 |
| Shank Diameter (Inch) | 16 |
| Overall Length (Decimal Inch) | 150.0000 |
| Overall Length (mm) | 150.00 |
| Overall Length (Inch) | 150 |
| Compatible Insert Size Code | VC..22. |
| Insert Holding Method | Screw Clamping |
| Compatible Insert Shape | Diamond |
| Insert Included | No |
| Rake | Positive |
| Cutting Direction | Right Hand |
| Rake Angle | 7.00 |
| Lead Angle | 93.00 |
| Series | MaxiLock-s |
| Insert Inscribed Circle (Inch) | 1/4 |
| Insert Inscribed Circle (Decimal Inch) | 0.2500 |
| Compatible Insert Thickness (Decimal Inch) | 0.1250 |
| Multi-use Tool | No |
| Cutting Tool Application | Boring |
| Center to Cutting Edge (mm) | 2.00 |
| Primary Workpiece Material | Universal |
| Coolant Through | Yes |
