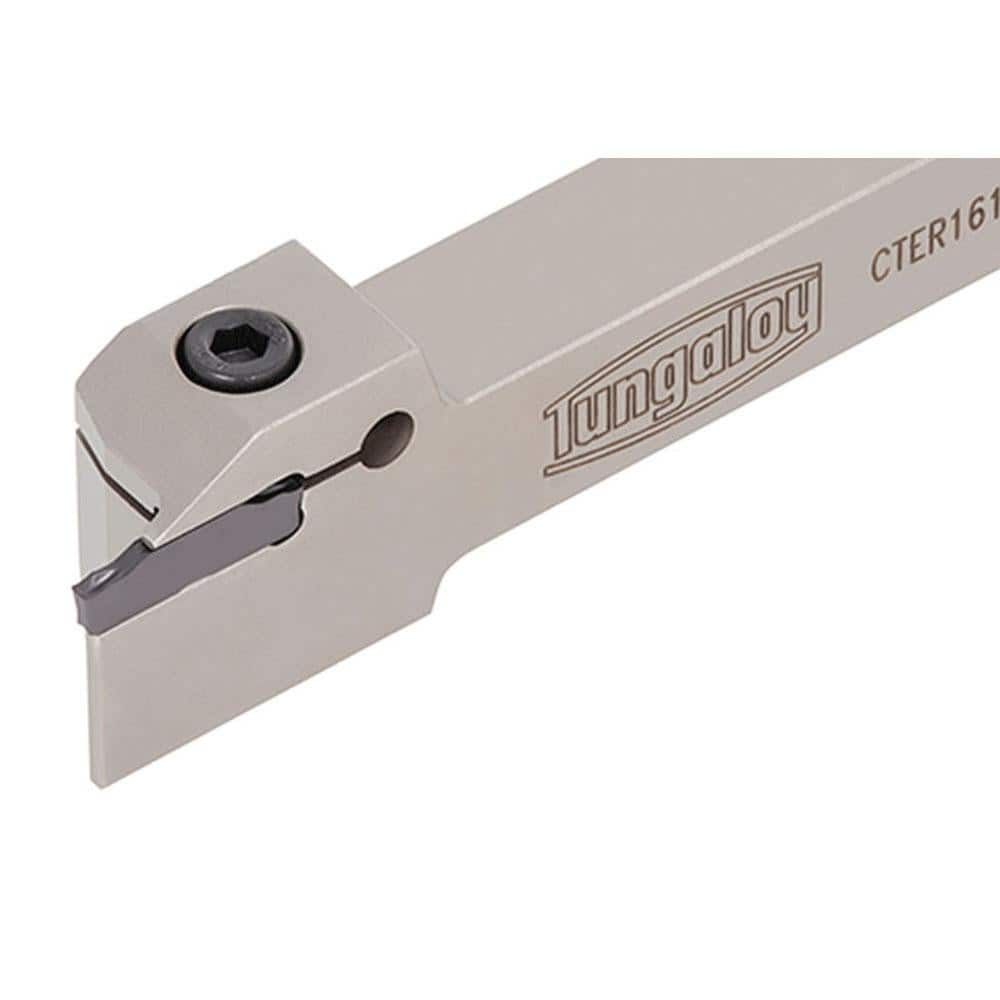

Indexable Grooving/Cut-Off Toolholders; Cutting Direction: Left Hand; Maximum Depth of Cut (Decimal Inch): 0.3150; Maximum Groove Width (Decimal Inch): 0.0980; Minimum Groove Width (Decimal Inch): 0.0590; Toolholder Style: CTE; Tool Material: Steel; Inser
Item #: 19872514
Brand: Tungaloy
Model #: 6880618
Product Specifications
| Cutting Direction | Left Hand |
| Maximum Depth of Cut (Decimal Inch) | 0.3150 |
| Maximum Groove Width (Decimal Inch) | 0.0980 |
| Minimum Groove Width (Decimal Inch) | 0.0590 |
| Toolholder Style | CTE |
| Tool Material | Steel |
| Insert Holding Method | Clamp |
| Compatible Insert Size Code | 2 |
| Shank Height (Inch) | 5/8 |
| Shank Height (Decimal Inch) | 0.6250 |
| Shank Length (Decimal Inch) | 4.5000 |
| Shank Width/Diameter (Decimal Inch) | 0.6250 |
| Shank Width/Diameter (Inch) | 5/8 |
| Series | CTE |
| Cutting Tool Application | Grooving; Cut-Off; Turning |
| Back of Bar to Cutting Edge (Decimal Inch) | 0.6290 |
| Head Height (Decimal Inch) | 0.6250 |
| Head Length (Decimal Inch) | 1.2990 |
| Primary Workpiece Material | Universal |
| Coolant Through | No |
